Acknowledgements

Setting up, getting started

Refer to the guide Setting up and getting started.

Design

:bulb: Tip: The .puml files used to create diagrams in this document docs/diagrams folder. Refer to the PlantUML Tutorial at se-edu/guides to learn how to create and edit diagrams.

Architecture

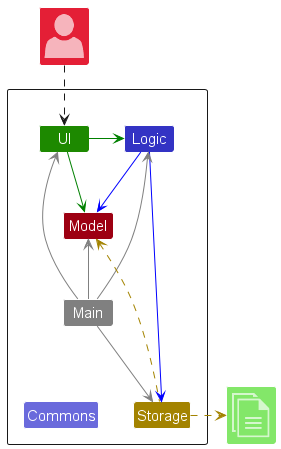

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main (consisting of classes Main and MainApp) is in charge of the app launch and shut down.

  • At app launch, it initializes the other components in the correct sequence, and connects them up with each other.
  • At shut down, it shuts down the other components and invokes cleanup methods where necessary.

The bulk of the app’s work is done by the following four components:

  • UI: The UI of the App.
  • Logic: The command executor.
  • Model: Holds the data of the App in memory.
  • Storage: Reads data from, and writes data to, the hard disk.

Commons represents a collection of classes used by multiple other components.

How the architecture components interact with each other

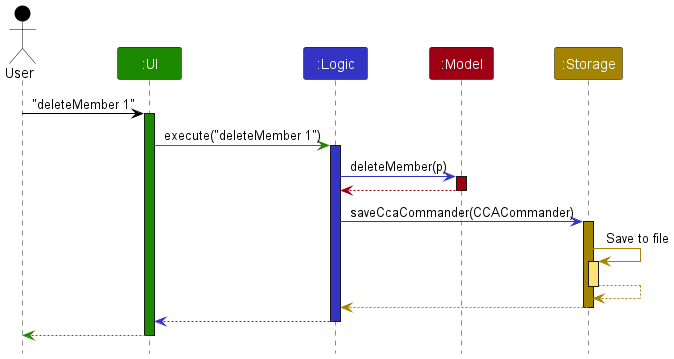

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command deleteMember 1.

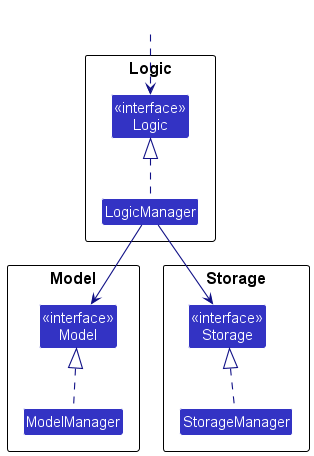

Each of the four main components (also shown in the diagram above),

  • defines its API in an interface with the same name as the Component.
  • implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point).

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component’s being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

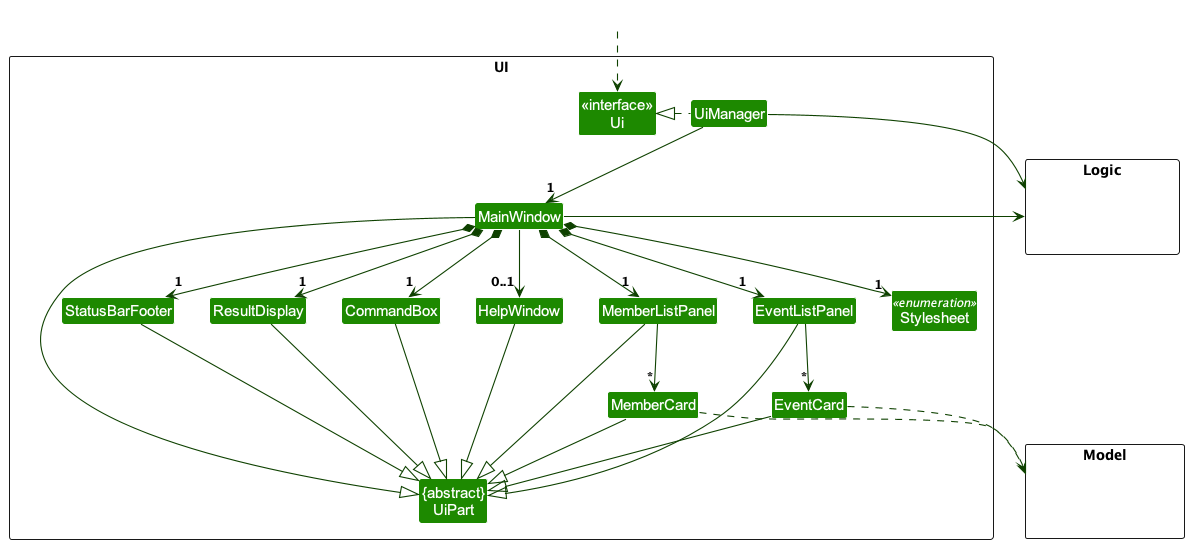

Structure of the UI Component

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, MemberListPanel, StatusBarFooter etc. All these, including the MainWindow, (but excluding Stylesheet) inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

  • executes user commands using the Logic component.
  • listens for changes to Model data so that the UI can be updated with the modified data.
  • keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
  • depends on some classes in the Model component, as it displays Member and Event objects residing in the Model

Logic component

API : Logic.java

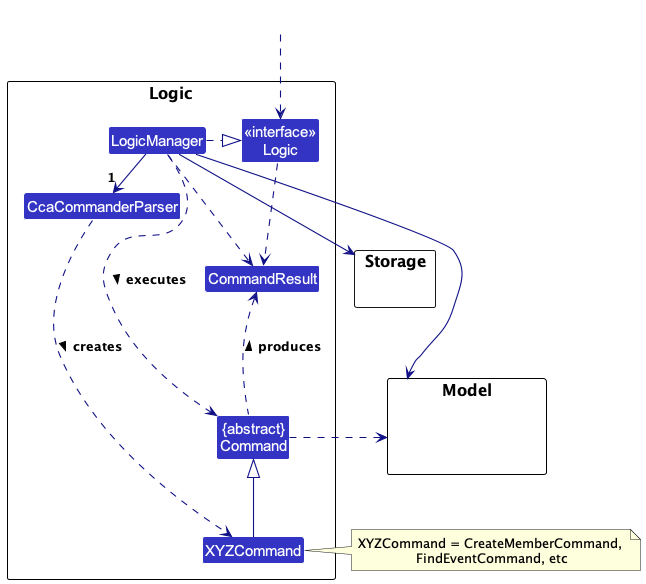

Here’s a (partial) class diagram of the Logic component:

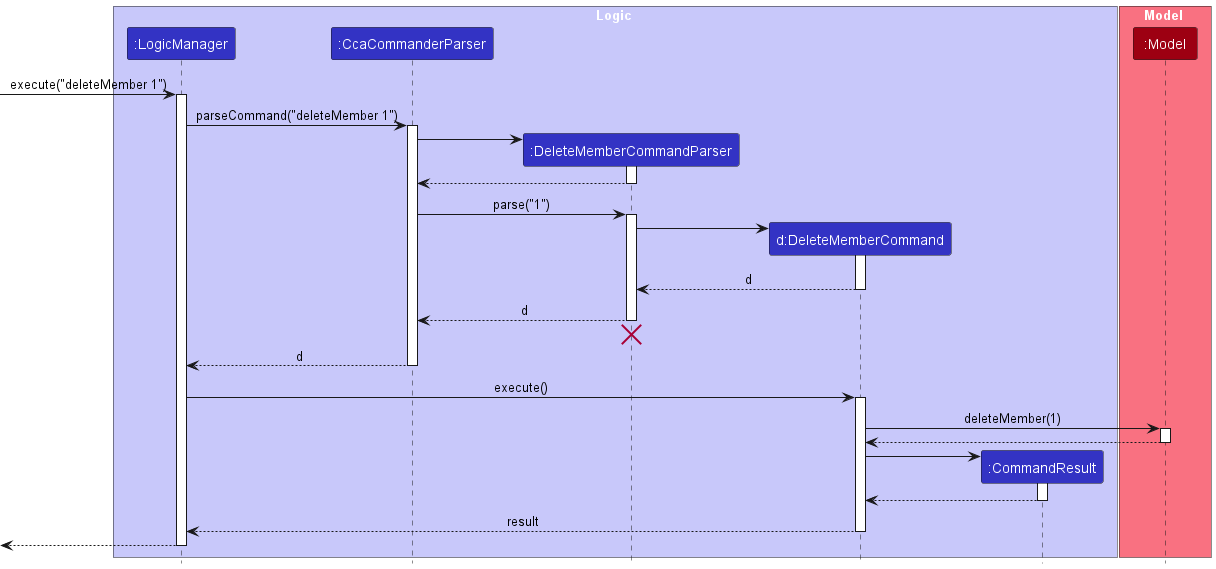

The sequence diagram below illustrates the interactions within the Logic component, taking execute("deleteMember 1") API call as an example.

:information_source: Note: The lifeline for DeleteMemberCommandParser should end at the destroy marker (X) but due to a limitation of PlantUML, the lifeline reaches the end of diagram.

How the Logic component works:

  1. When Logic is called upon to execute a command, it is passed to an CCACommanderParser object which in turn creates a parser that matches the command (e.g., DeleteMemberCommandParser) and uses it to parse the command.
  2. This results in a Command object (more precisely, an object of one of its subclasses e.g., DeleteMemberCommand) which is executed by the LogicManager.
  3. The command can communicate with the Model when it is executed (e.g. to delete a member).
  4. The result of the command execution is encapsulated as a CommandResult object which is returned back from Logic.

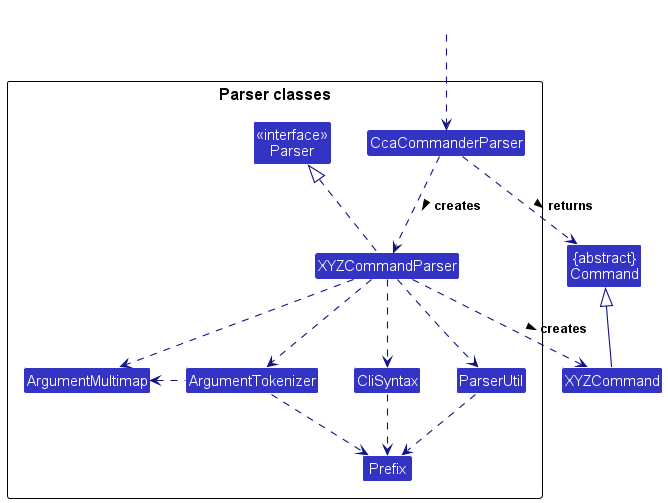

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

How the parsing works:

  • When called upon to parse a user command, the CcaCommanderParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., CreateMemberCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., CreateMemberCommand) which the CcaCommanderParser returns back as a Command object.
  • All XYZCommandParser classes (e.g., CreateMemberCommandParser, DeleteMemberCommandParser, …) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

Model component

API : Model.java

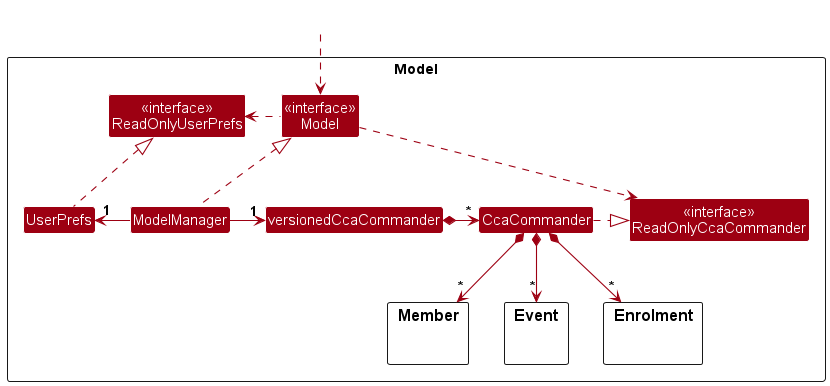

  • The class diagram below gives an overview of the model package.
    Details of the Member, Event, and Enrolment packages have be omitted for brevity. Please refer to the Member, Event and Enrolment diagrams for more information.

The Model component,

  • stores the CCACommander data i.e., all Member objects (which are contained in a UniqueMemberList object).
  • stores the currently ‘selected’ Member objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Member> that can be ‘observed’ e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
  • stores Event and Enrolment objects in a similar way to the Member objects.
  • stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
  • does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)

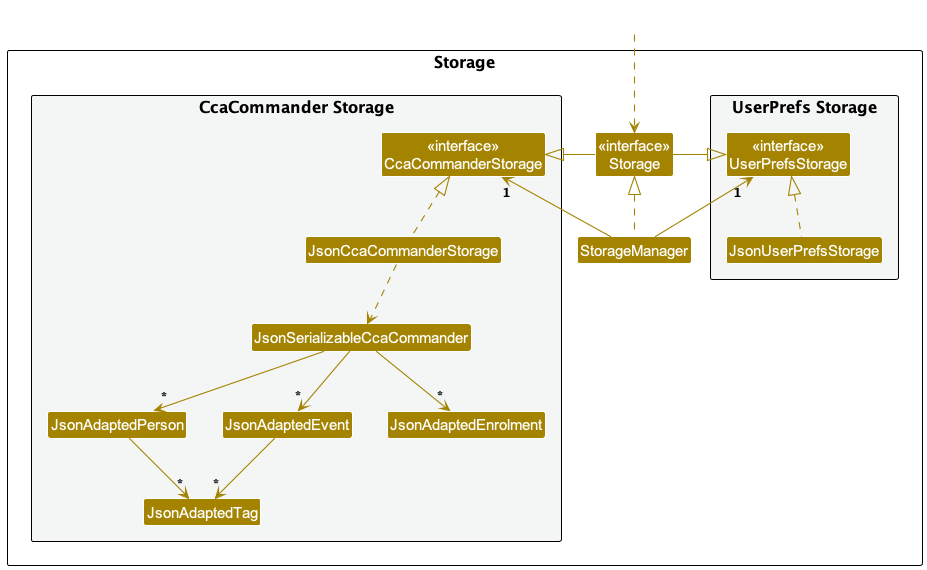

Storage component

API : Storage.java

The Storage component,

  • can save both CCACommander data and user preference data in JSON format, and read them back into corresponding objects.
  • inherits from both CcaCommanderStorage and UserPrefStorage, which means it can be treated as either one (if only the functionality of only one is needed).
  • depends on some classes in the Model component (because the Storage component’s job is to save/retrieve objects that belong to the Model)

Common classes

Classes used by multiple components are in the seedu.ccacommander.commons package.

Implementation

This section describes some noteworthy details on how certain features are implemented.

Member Model

This section explains how the Member model is implemented and the various design consideration when implementing this model.

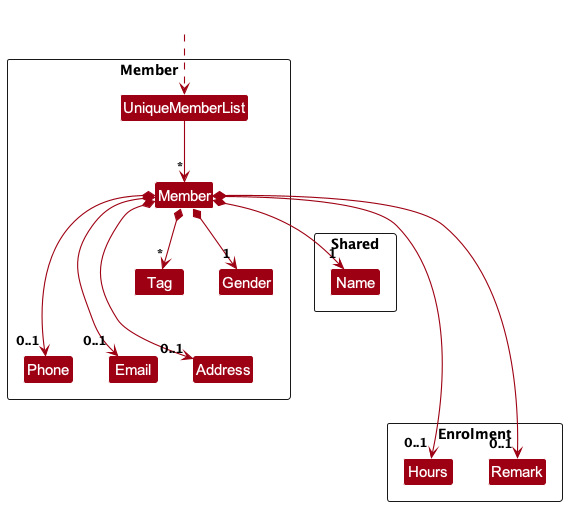

The class diagram below shows the current implementation of Member model.

Every Member contains a Name, Gender, Optional<Phone>, Optional<Email>, Optional<Address>, Optional<Hours>, Optional<Remark> and a set of Tags. UniqueMemberList stores all unique instances of Member.

Note that the Hours and a Remark fields will only be meaningfully initialised when either viewMember or viewEvent command is called. Hence, these two fields are only tools for UI related purposes.

Design Considerations

This section elaborates further on why we chose to adopt a Name over other potential solutions.

Aspect: How to uniquely identify Members across models.

  • Alternative 1 (current choice): Ensure that each Member must have a unique Name
    • Pros:
      • This is convenient to implement as each Member entity will have a Name field attached to it.
      • Using a name is intuitive for users, as individuals are typically identified by their names.
      • This approach simplifies user interaction and search functionality, as names are commonly used identifiers.
      • Overall, names are easier to manage and communicate compared to complex alphanumeric identifiers.
    • Cons:
      • Limits scalability, as the pool of available names may be finite.
      • Prone to errors if there is insufficient validation, leading to the possibility of duplicate names.
      • Susceptible to changes in personal information, such as name modifications, requiring additional handling for related entities such as Enrolment.
  • Alternative 2 : Introduce a UUID attribute for each Member.
    • Pros:
      • UUID is immutable.
    • Cons:
      • The implementation process is intricate, requiring careful integration of the UUID field into the Member model and the establishment of equality checks in CCACommander based on UUID.
      • There exists a potential risk of UUID collisions when dealing with substantial amounts of member data generated by random UUID generation. More so when Event would also use UUID if we integrate UUID in Member.

Event Model

This section explains how the Event model is implemented and the various design consideration when implementing this model.

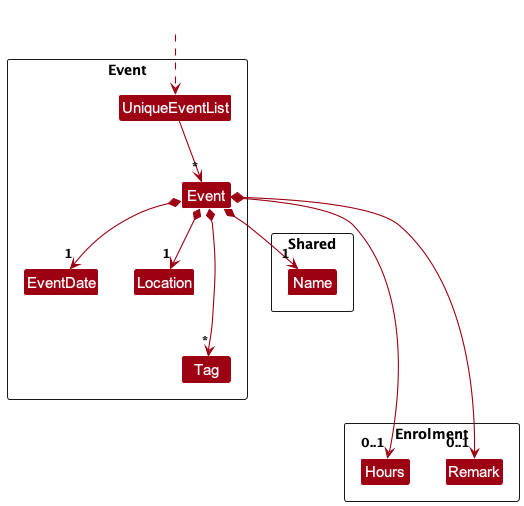

The Event and UniqueEventList classes are implemented as shown in the diagram below:

Every Event contains a Name, Location, EventDate, Optional<Hours>, Optional<Remark> and a set of Tags. UniqueEventList stores all unique instances of Event.

Note that similar to Member class , the Hours and a Remark fields will only be meaningfully initialised when either viewMember or viewEvent command is called. Hence, these two fields are only tools for UI related purposes.

Design Considerations

This section elaborates further on why we chose to adopt a Name over other potential solutions.

Aspect: How to uniquely identify Events across models.

  • Alternative 1 (current choice): Ensure that each Event must have a unique Name
    • Pros:
      • This is convenient to implement as each Event entity will have a Name field attached to it.
      • This approach will ensure consistency with the Member class by both utilizing Name as the identifier.
      • This approach simplifies user interaction and search functionality, as names are commonly used identifiers.
      • Overall, names are easier to manage and communicate compared to complex alphanumeric identifiers.
    • Cons:
      • Limits scalability, as the pool of available names may be finite.
      • Prone to errors if there is insufficient validation, leading to the possibility of duplicate names.
      • Susceptible to changes in personal information, such as name modifications, requiring additional handling for related entities such as Enrolment.
  • Alternative 2 : Introduce a UUID attribute for each Event.
    • Pros:
      • UUID is immutable.
    • Cons:
      • The implementation process is intricate, requiring careful integration of the UUID field into the Event model and the establishment of equality checks in CCACommander based on UUID.
      • There exists a potential risk of UUID collisions when dealing with substantial amounts of event data generated by random UUID generation.

Enrolment Model

This section explains how the Enrolment model is implemented and the various design consideration when implementing this model.

Implementation

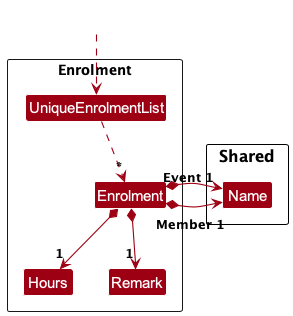

The Enrolment and UniqueEnrolmentList classes are implemented as shown in the diagram below:

Enrolment encapsulates the enrolment of a member into an event. It composes of the Name of the member and the Name of the event enrolled in, number of Hours they contributed, and a Remark to note for that enrolment. UniqueEnrolmentList stores all unique instances of Enrolment.

Design considerations:

Aspect: How to store each member’s events and each event’s members.

  • Alternative 1 (current choice): Saves the enrolments as an independent list.
    • Pros:
      • Easy to implement.
      • Less performance issues when loading and storing enrolments.
    • Cons:
      • Incur high performance cost when viewing members of event or events of member.
  • Alternative 2: Each member or event has its own list of enrolments.
    • Pros:
      • Linear time to view members of event or events of members.
    • Cons:
      • Hard to implement.
      • Will encounter more difficulties when implementing other features related to enrolment.

Alternative 1 was chosen as the benefit of having a simple design outweighs the cost of having a higher performance overhead when viewing members of event or events of member. Alternative 2 has multiple layers of complexities that are difficult to navigate and this will compound when dealing with other features related to enrolment. The simpler design of alternative 1 also allows for more rigorous testing.

Enrol Feature

The enrol feature allows users to link a member to an event in order to keep track of their enrolment and contributions to the event.

This section will explain how the enrol feature was implemented and the various design considerations when implementing the feature.

Implementation

The enrolment mechanism is facilitated by EnrolCommand. It extends Command. The method, EnrolCommand#execute(Model model), performs a validity check and adds a member’s enrolment for a particular event if all the supplied parameters are valid.

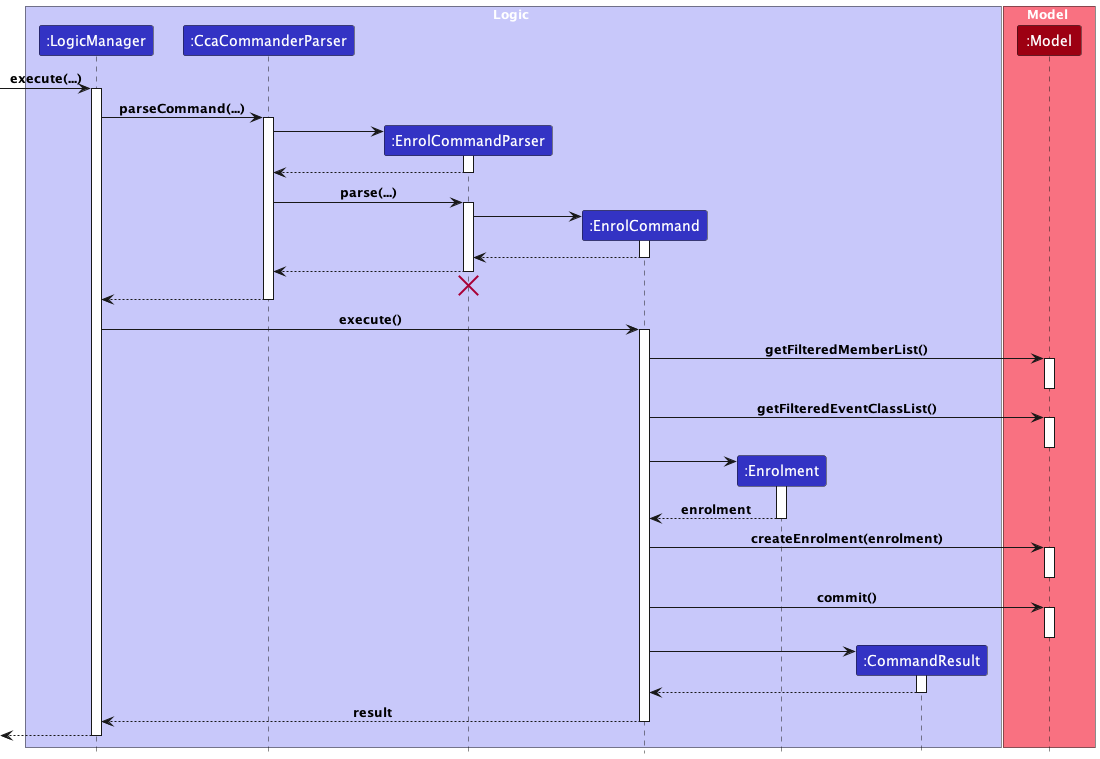

The sequence diagram below shows how the Model and LogicManager components interact when a EnrolCommand is executed with user input enrol m/1 e/1 h/1 r/Role: Photographer represented by ...

  1. LogicManager uses the CcaCommanderParser class to parse the user command, creating a new instance of EnrolCommandParser object.
  2. The EnrolCommandParser creates a new instance of a EnrolCommand object and returns it to CcaCommanderParser
  3. CcaCommanderParser encapsulates the EnrolCommand object as a Command object which is executed by the LogicManager.
  4. The command execution calls Model#getFilteredMemberList() and Model#getFilteredEventList() to get the desired member and event respectively using indexes supplied by the user.
  5. Next, the command execution creates a new instance of an Enrolment object.
  6. Model#createEnrolment() is then called, adding the new Enrolment object to the uniqueEnrolmentList object in model.
  7. The change resulting from the command’s execution is saved using the Model#commit(String commitMessage) method for the undo/redo feature.
  8. A CommandResult object which encapsulates the result of the command execution is passed back to the Ui.

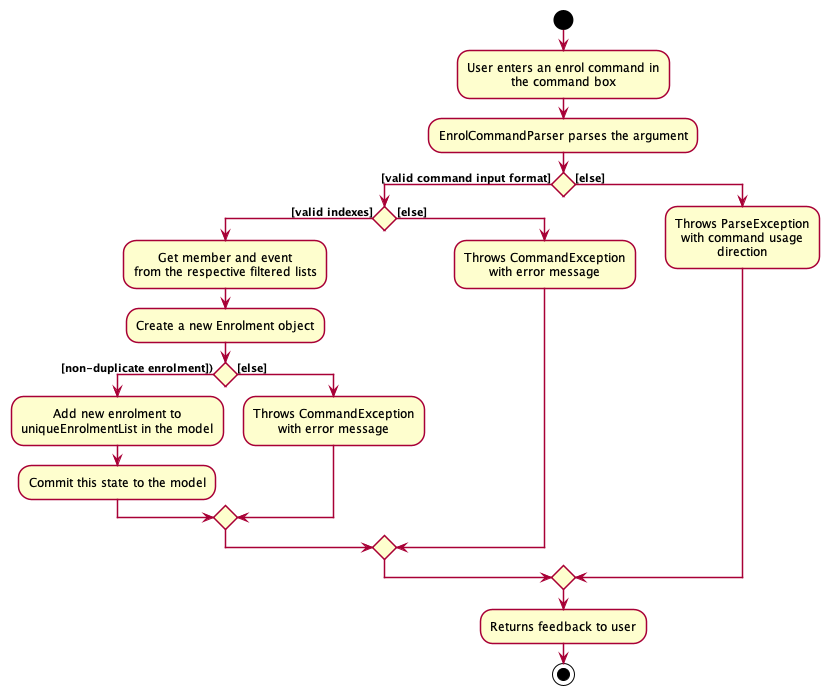

The following activity diagram shows how the EnrolCommand works.

Design Considerations

Aspect: EnrolCommand parameters

  • Alternative 1 (current choice): EnrolCommand has parameters Name memberName, Name eventName, Hours hours and Remark remark.
    • Pros:
      • Less complex code reduces the possibility of bugs.
      • Reduced coupling, enhancing maintainability
    • Cons:
      • Not standardised with other creation commands.
  • Alternative 2: EnrolCommand has parameter Enrolment enrolment
    • Pros:
      • Standardised with other creation commands
    • Cons:
      • More complex code leading to higher possibility of bugs.
      • Increased coupling, reducing maintainability.

Alternative 1 was chosen because the cons of implementing alternative 2 outweighs the benefits derived from it. Alternative 2 would require EnrolCommandParser to have knowledge of the Model. This would result in an increased coupling as it would then have greater dependence on more modules. Hence, while Alternative 1 would result in the EnrolCommand to be not standardised with other create commands, it provides a simpler implementation with fewer changes needed while also maintaining ease of testing.

Undo/Redo Feature

The Undo/Redo feature allows the user to revert commands that were entered wrongly.

This section will explain how the redo and undo features were implemented and the various design considerations when implementing the feature.

Implementation

The undo/redo mechanism is facilitated by VersionedCcaCommander. It extends CcaCommander with an undo/redo history, stored internally as an ccaCommanderVersionList and versionPointer. Additionally, it implements the following operations:

  • VersionedCcaCommander#commit(String commitMessage) — Saves the current CCACommander version and its commit message in its history.
  • VersionedCcaCommander#undo() — Restores the previous CCACommander version from its history.
  • VersionedCcaCommander#redo() — Restores a previously undone CCACommander version from its history.

These operations are exposed in the Model interface as Model#commit(), Model#undo() and Model#redo() respectively.

Given below is an example usage scenario and how the undo/redo mechanism behaves at each step.

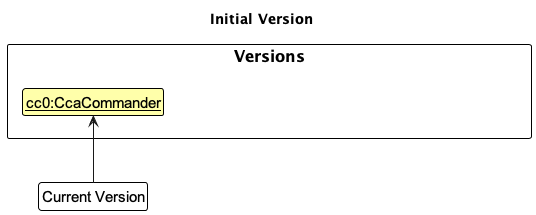

Step 1. The user launches the application for the first time. The VersionedCcaCommander will be initialized with the initial CCACommander version, and the versionPointer pointing to that single CCACommander version. This initial CCACommander version will be saved into the ccaCommanderVersionList

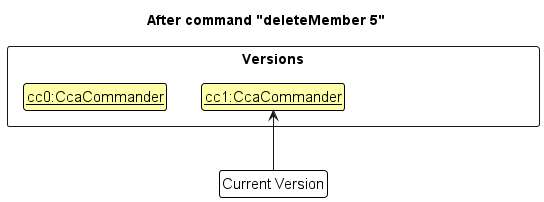

Step 2. The user executes deleteMember 5 command to delete the 5th member in CCACommander. The deleteMember command calls Model#commit(String commitMessage), causing the modified version of the CCACommander after the deleteMember 5 command executes to be saved in the ccaCommanderVersionList, and the versionPointer is shifted to the newly inserted CCACommander version.

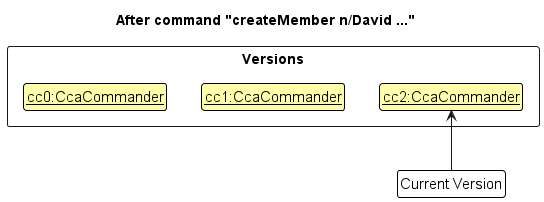

Step 3. The user executes createMember n/David …​ to add a new member. The createMember command also calls Model#commit(String commitMessage), causing another modified CCACommander version to be saved into the ccaCommanderVersionList.

:information_source: Note: If a command fails its execution, it will not call Model#commit(String commitMessage), so the CCACommander version will not be saved into the ccaCommanderVersionList.

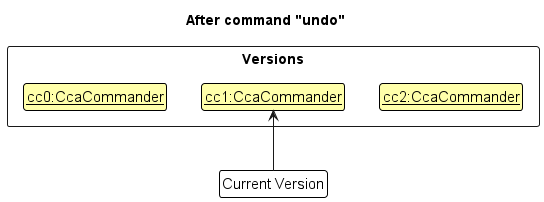

Step 4. The user now decides that adding the member was a mistake, and decides to undo that action by executing the undo command. The undo command will call Model#undo(), which will shift the versionPointer once to the left, pointing it to the previous CCACommander version, and restores the CCACommander to that version.

:information_source: Note: If the versionPointer is at index 0, pointing to the initial CcaCommander version, then there are no previous CcaCommander versions to restore. The undo command uses Model#canUndo() to check if this is the case. If so, it will return an error to the user rather than attempting to perform the undo.

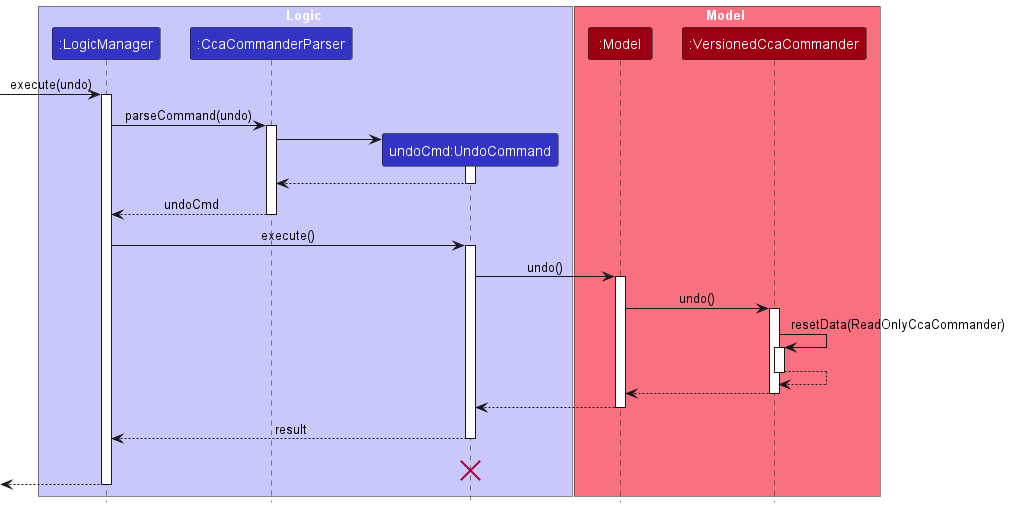

The following sequence diagram shows how the undo operation works:

:information_source: Note: The lifeline for UndoCommand should end at the destroy marker (X) but due to a limitation of PlantUML, the lifeline reaches the end of diagram.

The redo command does the opposite — it calls Model#redo(), which shifts the versionPointer once to the right, pointing to the previously undone version, and restores CCACommander to that version.

:information_source: Note: If the versionPointer is at index ccaCommanderVersionList.size() - 1, pointing to the latest CCACommander version, then there are no undone CcaCommander versions to restore. The redo command uses Model#canRedo() to check if this is the case. If so, it will return an error to the user rather than attempting to perform the redo.

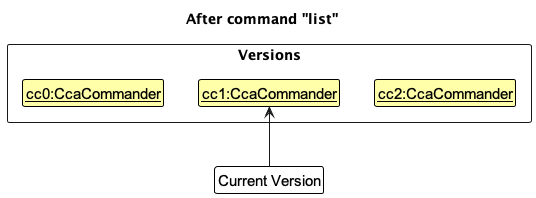

Step 5. The user then decides to execute the command list. Commands that do not modify the CCACommander, such as list, will usually not call Model#commit(String commitMessage), Model#undo() or Model#redo(). Thus, the ccaCommanderVersionList remains unchanged.

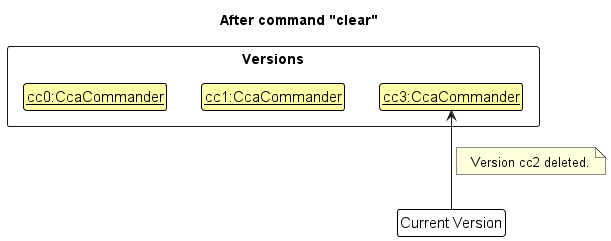

Step 6. The user executes clear, which calls Model#commit(String commitMessage). Since the versionPointer is not pointing at the end of the ccaCommanderVersionList, all CCACommander versions after the versionPointer will be purged. Reason: It no longer makes sense to redo the createMember n/David …​ command. This is the behavior that most modern desktop applications follow.

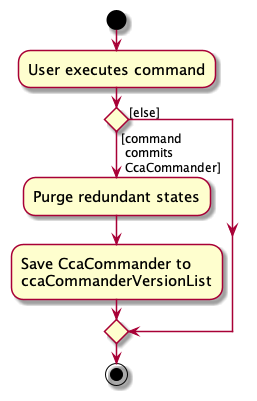

The following activity diagram summarizes what happens when a user executes a new command:

Design considerations:

Aspect: How undo & redo executes:

  • Alternative 1 (current choice): Saves the entire CCACommander.
    • Pros: Easy to implement.
    • Cons: May have performance issues in terms of memory usage.
  • Alternative 2: Individual command knows how to undo/redo by itself.
    • Pros: Will use less memory (e.g. for deleteMember, just save the member being deleted).
    • Cons: We must ensure that the implementation of each individual command are correct.

Command History

Implementation

The proposed commandHistory mechanism is facilitated by CommandHistory. It contains commandHistoryList and currentCommandPointer. Additionally, it implements the following operations:

  • CommandHistory#hasPreviousCommand() — Returns if there is a previously command from the history based on currentCommandPointer.
  • CommandHistory#hasNextCommand() — Returns if there is a next command from the history based on currentCommandPointer.
  • CommandHistory#getPreviousCommand() — Restores the previous command from its history based on currentCommandPointer.
  • CommandHistory#getNextCommand() — Restores the next command from its history based on currentCommandPointer.
  • CommandHistory#addCommand() — Add the command into the history.
  • CommandHistory#isLastCommandEqualCommand() — Returns if the command is equal to the last command added into the commandHistoryList.
  • CommandHistory#resetPointer() — Resets the pointer to be start from the most recent command again.
  • CommandHistory#isLastCommand() — Returns if currentCommandPointer is at the last command.

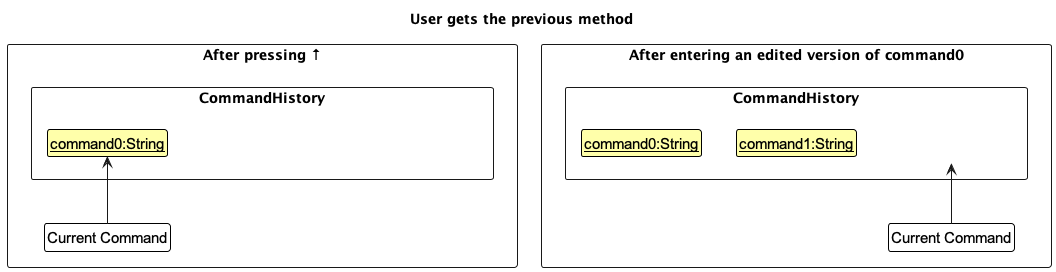

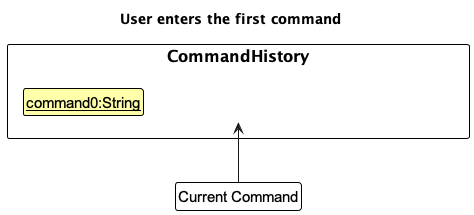

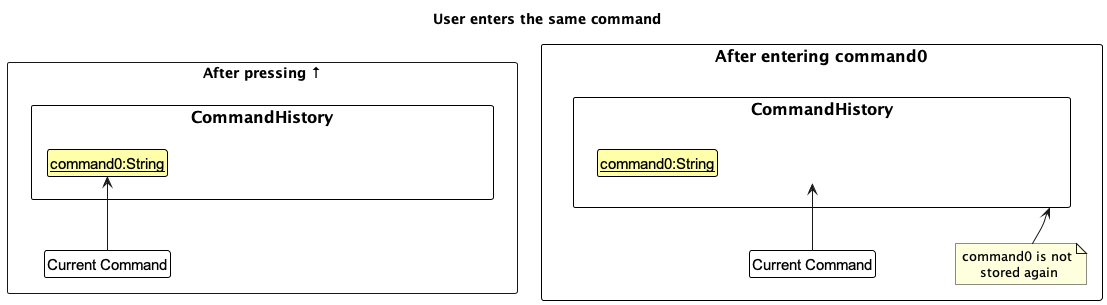

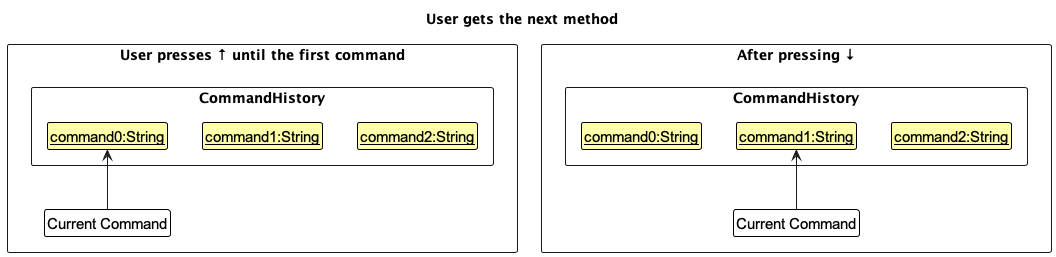

Given below is an example usage scenario and how the commandHistory behaves at each step.

Step 1. The user launches the application for the first time and enters their first command. The CommandHistory will save the command and the currentCommandPointer won’t be pointing to any command.

Step 2. The user presses ↑ while the commandBox is selected. CommandHistory#getPreviousCommand() is called and the previous command is displayed in the commandBox. When the previous command is entered into the commandBox, the new version of command will not be stored in CommandHistory after calling CommandHistory#isLastCommandEqualCommand() and it returns true.

Step 3. The user presses ↑ while the commandBox is selected. CommandHistory#getPreviousCommand() is called and the previous command is displayed in the commandBox. When the previous command is edited and is entered into the commandBox, the newly edited version of command will be stored in CommandHistory after calling CommandHistory#addCommand().

Step 4. The user has pressed ↑ while selecting the commandBox until the first Command and CommandHistory#getPreviousCommand() is called multiple times. The user then presses ↓ and CommandHistory#getNextCommand() is called and the command1 (the next command) will then be displayed in the commandBox.

:information_source: Note: If the currentCommandPointer is at index 0, pointing to the initial first command, then there are no previous commands to restore. The program uses CommandHistory#hasPreviousCommand() to check if this is the case. If so, it will not change anything.

The opposite occurs too when calling the next command  —  the program calls CommandHistory#hasNextCommand(), which shifts the currentCommandPointer once to the right, pointing to the previously entered command and displaying that command instead.

:information_source: Note: If the commandHistoryPointer is at index commandHistoryList.size() - 1, pointing to nothing, then there are no commands to restore. The program uses CommandHistory#hasNextCommand() to check if this is the case. If so, it will not call CommandHistory#getNextCommand() but will instead use CommandHistory#isLastCommand() to check if the commandHistoryPointer is at the last command and set the commandBox to be blank.

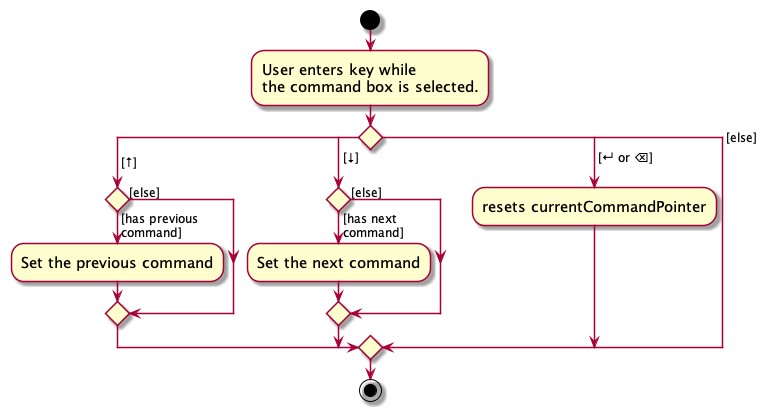

The following activity diagram summarizes what happens to CommandHistory when a user enters a key in the commandBox:

Design considerations:

Aspect: Storing of Command History:

  • Alternative 1 (current choice): Stores the list of all commands.
    • Pros: Allows user to iterate through all commands listed.
    • Cons: May have performance issues in terms of memory usage after prolonged usage.
  • Alternative 2: Command History only stores previous command.
    • Pros: Will use less memory and reduces user error.
    • Cons: Quite limited as a feature.

Planned Enhancements

Allow users to add / delete tags without retyping previous tags

Current Implementation:

  • Current Issue: Each member/event can have tags attached to it and these tags can be edited using the editMember/editEvent commands. However, upon adding a new tag to a member/event without typing all the old tags, it will override the initial tags attached to the member/event and only the new tag will be displayed. This brings inconvenience to the user as the user has to type both the old and new tags instead of just typing the new tag.
  • Example: We have a member called Alice with a member index of 1, and she has an initial tag called friend. We want to add a new tag early to her. Upon entering the command editMember 1 t/early, the current implementation will override all the initial tags and only the early tag will be displayed.

Proposed Solution:

We propose to enhance the editMember/editEvent commands to give the user the flexibility to choose one of the following options when editing the tags of the member/event:

  1. Override the initial tags entirely where the new tags that the user enters will entirely replace all the old tags
  2. Add new tag to the list of old tags where the old tags will remain attached to the member/event with the addition of the new tags
  3. Edit current list of tags attached to the member/event
  4. Delete specific tags from the current list of tags attached to the member/event

Allow users to create and edit a member/event with name containing non-alphanumeric characters

Current Implementation:

  • Current Issue: Member/event name only accepts alphanumeric characters and restricts the user from entering special characters into the member/event name, which should be allowed as member/event names can contain special characters.
  • Example: The user wants to create a new event named “Raffles Hall’s Musical Production” and the user enters createEvent n/Raffles Hall's Musical Production l/Raffles Hall d/2023-09-19 but the message “Names should only contain alphanumeric characters and spaces, and it should not be blank” is shown to the user instead of accepting it as a valid event. This is due to the presence of the special character ' in the event name.

Proposed Solution:

We propose to allow the createMember, editMember , createEvent and editEvent commands to accept special characters in the name field and not to be restricted to just alphanumeric characters.

Allow users to delete values from optional fields in member/event/enrolment

Current Implementation:

  • Current Issue: Currently, there is no way for the user to delete unwanted values for optional fields in member/event/enrolment.
  • Example: For example, if the user accidentally adds a remark to an enrolment, they are unable to remove it. The only way for the user to remove this unwanted remark is to delete the enrolment and add it again without the remark, which is highly inconvenient. This would be similar for the other optional fields in member and event.

Proposed Solution:

We propose to enhance the editMember, editEvent and editEnrolment commands to give the user the flexibility to remove any unwanted values from the optional fields in member/event/enrolment. For instance, to remove the value from an optional field, the user can provide an empty prefix e.g. if the user wishes to remove the phone number from the first member, they can do editMember 1 p/.

Make UI stay on current view upon editMember or editEvent

Current Implementation:

  • Current Issue: Currently, calling editMember or editEvent will result in the listing of all events and members.
  • Example: If the user is viewing a filtered list for example if they have just called viewMember, if the user then edits a member or event using editMember or editEvent, all events and members will be displayed instead of their current filtered view. This will cause inconvenience for the user as they will have to relocate the edited member/event.

Proposed Solution:

We propose to change the behaviour of editMember and editEvent such that calling them will no longer list all members and events, and instead remain on the user’s current view.

Show a more specific error message for negative index in editMember, editEvent, viewMember, viewEvent, deleteMember and deleteEvent

Current Implementation:

  • Current Issue: When the user inputs a negative index for the editMember, editEvent, viewMember, viewEvent, deleteMember or deleteEvent commands, the displayed error message is not specific enough and does not make it clear to the user that he/she has wrongly input a negative index.
  • Example: The user enters the command editMember -1 n/Jane Smith and the error message displayed is “Invalid command format!… Parameters: INDEX (must be a positive integer)…”. The current error message fails to highlight to the user the root cause of the error, which is a negative member index.

Proposed Solution:

We propose to make editMember, editEvent, viewMember, viewEvent, deleteMember and deleteEvent commands display a more specific error message along the lines of “The provided index is negative and should be a positive integer instead.” when the user inputs a negative index. In order to implement this, the relevant CommandParser classes have to recognise negative indexes and throw more specific exceptions.

Provide more specific index error messages to the user

Current Implementation:

  • Current Issue: As of now, for commands that accept more than 1 index as a parameter, it is hard to tell which index is wrong based on the index error message shown to the user if one of the indexes provided is wrong. This can hamper the user’s efficiency as the user cannot tell immediately which provided index is wrong.
  • Example: Commands such as enrol accept more than 1 index as a parameter. When the user accidentally enters an invalid index such as enrol m/1 e/-1 where the event index is wrong, the error message displayed to the user is just “Index is not a non-zero unsigned integer.” There is a lack of information shown to the user which specific index is wrong.

Proposed Solution:

We propose to make the index error messages more specific and highlight to the user which index is wrong and why that index is wrong. For example, in the enrol m/1 e/-1 input, we will show an error message to the user along the lines of “The provided Event Index is not a non-zero unsigned integer.”

Improve findMember/findEvent criteria

Current Implementation:

  • Current Issue: As of now, findMember and findEvent commands will only match the respective member and event if the name of the member or event contains a word that matches exactly the entire given find keyword. This means that the user will have to remember the entire name of the Member or Event to find it, reducing the effectiveness of findMember and findEvent.
  • Example: findMember alex will list a member with name “Alex Yeoh”, but findMember ale will result in no member being listed.

Proposed Solution:

We propose that the find criteria will be improved such that it will find any event/member name which contains the given keyword string, i.e. member/event name will not have to contain a word that matches exactly with the given find keyword. For example, the command findMember a will now match members with name “Alex”, “Alice”, etc. In addition, if the user remembers that an event name consists of 2 words, they can do findEvent ‎, which would list all events which have a blank space in their name.

Make UI stay on current view upon undo/redo

Current Implementation:

  • Current Issue: Currently, the undo and redo commands will always result in all members and events being listed.
  • Example: For example, if the user enrols a member to an event and views the member, before deciding to unenrol the member from the event by executing the undo command, all the members and events would then be listed. This inconveniences the user as they will then have to execute the viewMember command again to see their changes.

Proposed Solution:

We propose to change the behaviour of undo and redo such that executing them will no longer list all members and events, and instead remain on the user’s current view.

Provide specific error messages for unknown prefixes

Current Implementation:

  • Current Issue: Many of the commands require the use of prefixes in the input, such as n/, g/, p/, etc. However, upon inputting an erroneous unknown prefix in the command input, the error message shown to the user is not accurate. The error message displayed will be based on the error message of the preceding prefix.
  • Example: The user inputs the command createMember n/Jane Smith g/Female q/test but the error message displayed will not highlight that the unknown q/ prefix was typed in. The error message displayed to the user will be “Gender should only be one of the following: Male, Female, or Others” which is based off the standard error message for gender prefixes, which happens to be the prefix preceding the q/ prefix.

Proposed Solution:

We propose to display a more specific error message to the users if they input unknown prefixes. For example, if the user provides the command, createMember n/Jane Smith g/Female q/test, an error message along the lines of “The q/ prefix is not a correct prefix for this command.” will be displayed. This will involve us improving the relevant CommandParser classes to properly sieve out cases of unknown prefixes being entered and throwing more specific exceptions related to such issues.

Documentation, logging, testing, configuration, dev-ops

Appendix A: Requirements

Product scope

Target user profile:

  • has a need to manage a significant number of CCA members and events
  • prefer desktop apps over other types
  • can type fast
  • prefers typing to mouse interactions
  • is reasonably comfortable using CLI apps

Value proposition: one stop app to manage CCA members and events faster than a typical mouse/GUI driven app

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Priority As a …​ I can …​ So that …​
* * * beginner user create a new profile of a CCA member I can keep track of their information
* * * power user delete the profile of a CCA member I can remove them from the system when needed
* * * beginner user list all members in my CCA I can keep track of my CCA strength
* * * beginner user add a new event hosted by the CCA I can keep track of upcoming activities
* * * power user delete an event I can remove it from the schedule
* * * power user view a list of all events hosted by the CCA I can see event history
* * * beginner user add a member to an event I can track which members are participating in the event
* * * beginner user remove a member from an event I can amend adding the wrong member to an event
* * * beginner user view the members who have enrolled in an event I can estimate the number of members who will enrol in similar events in the future
* * * beginner user view events of a member I can check how involved that particular member is
* * beginner user recall the previous commands I can enter similar commands quickly
* * power user undo a command I can correct any wrong commands that I have entered previously
* * power user redo a command I can correct any wrong undo commands that I have entered previously

Future User Stories to be implemented:

Priority As a …​ I can …​ So that …​
* * power user generate reports on the total hours spent by CCA Members for a specified period I can assess their involvement
* * power user add multiple profiles for CCA Members in bulk I can save time when onboarding new members
* * power user export attendance data for an event as a CSV file I can use it for further analysis of which events are more popular
* * long term user archive/hide unused data I will not be distracted by irrelevant data
* * long term user create custom templates for events I can quickly set up recurring activities with predefined details
* * long term user create aliases for commands I can save time on frequently performed commands
* * beginner user access a user-friendly help guide for exporting data in PDF/CSV format I can share the data with other CCA Heads
* power user import data from an external source to update member profiles I can keep information up-to-date

Use cases

(For all use cases below, the System is the CCACommander and the Actor is the user, unless specified otherwise)

Use case: UC01 - Create a member

Guarantees: MSS -> Entered member will be added.

MSS

  1. User enters command to create a member.

  2. CCACommander adds that member to the member list and displays the member added.

    Use case ends.

Extensions

  • 1a. User uses the command incorrectly.

    • 1a1. CCACommander shows an error message.

      Use case ends.

Use case: UC02 - Delete a member

Guarantees: MSS -> Specified member will be deleted.

MSS

  1. User requests to list all members (UC03).
  2. CCACommander shows a list of all members.
  3. User requests to delete a specific member in the list of all members.

  4. CCACommander deletes the specific member.

    Use case ends.

Extensions

  • 3a. The given index is invalid.

    • 3a1. CCACommander shows an error message and requests for a valid index from the user.
    • 3a2. User enters new index.

    • Steps 3a1-3a2 are repeated until index given by the user is correct.

      Use case resumes at step 4.

Use case : UC03 - List all members

Guarantees: MSS -> All members will be listed.

MSS

  1. User requests to list all members.

  2. CCACommander lists all members in the CCA.

    Use case ends.

Extensions

  • 1a. The list of all members is empty.

    • 1a1. CCACommander shows an empty member list.

      Use case ends.

Use case : UC04 - List all events

Guarantees: MSS -> All events will be listed.

MSS

  1. User requests to list all events.

  2. CCACommander lists all events in the CCA.

    Use case ends.

Extensions

  • 1a. The list of all events is empty.

    • 1a1. CCACommander shows an empty event list.

      Use case ends.

Use case: UC05 - View members of event

Guarantees: MSS -> All members of the specified event will be listed.

MSS

  1. User requests to list all events (UC04).
  2. CCACommander shows a list of all events.
  3. User requests to view a specific event in the list of all events.

  4. CCACommander displays all members of the specified event.

    Use case ends.

Extensions

  • 3a. The given index is invalid.

    • 3a1. CCACommander shows an error message.

      Use case resumes at step 2.

Use case: UC06 - View events of member

Guarantees: MSS -> All events of the specified member will be listed.

MSS

  1. User requests to list all members (UC03).
  2. CCACommander shows a list of all members.
  3. User requests to view a specific member in the list of all members.

  4. CCACommander displays all events of the specified member.

    Use case ends.

Extensions

  • 3a. The given index is invalid.

    • 3a1. CCACommander shows an error message.

      Use case resumes at step 2.

Use case: UC07 - Create an event

Guarantees: MSS -> Entered event will be added.

MSS

  1. User requests to add an event to the list.

  2. CCACommander adds that event to the event list and displays the event added.

    Use case ends.

Extensions

  • 1a. User uses the command incorrectly.

    • 1a1. CCACommander shows an error message.

      Use case ends.

Use case: UC08 - Delete an event

Guarantees: MSS -> Specified event will be deleted.

MSS

  1. User lists all events (UC04).
  2. CCACommander shows a list of all events.
  3. User requests to delete a specific event in the list of all events.

  4. CCACommander deletes the specific event.

    Use case ends.

Use case: UC09 - Enrol member to an event

Guarantees: MSS -> Specified member will be enrolled to the event.

MSS

  1. User lists all members (UC03).
  2. CCACommander shows a list of all members.
  3. User lists all events (UC04).
  4. CCACommander shows a list of all events.
  5. User requests to enrol a specific member in the list of all members to a specific event in the list of all events.

  6. CCACommander enrols the specified member from the specified event.

    Use case ends.

Extensions

  • 5a. The given index is invalid.

    • 5a1. CCACommander shows an error message and requests for a valid index from the user.
    • 5a2. User enters new index.

    • Steps 5a1-5a2 are repeated until index given by the user is correct.

      Use case resumes at step 6.

  • 5b. The specified member is already added to the event.

    • 5b1. CCACommander shows an error message saying member is already in event.

      Use case ends.

Use case: UC10 - Unenrol member from an event

Guarantees: MSS -> Specified member will be unenrolled from the event.

MSS

  1. User lists all members (UC03).
  2. CCACommander shows a list of all members.
  3. User lists all events (UC04).
  4. CCACommander shows a list of all events.
  5. User requests to unenrol a specific member in the list of all members to a specific event in the list of all events.

  6. CCACommander unenrols the specified member to the specified event.

    Use case ends.

Extensions

  • 5a. The given index is invalid.

    • 5a1. CCACommander shows an error message and requests for a valid index from the user.
    • 5a2. User enters new index.

    • Steps 5a1-5a2 are repeated until index given by the user is correct.

      Use case resumes at step 6.

  • 5b. The specified member is not in the event.

    • 5b1. CCACommander shows an error message saying member is not in event.

      Use case ends.

Non-Functional Requirements

  1. Should work on any mainstream OS as long as it has Java 11 or above installed.
  2. Should be able to hold up to 1000 members without a noticeable sluggishness in performance for typical usage.
  3. Should be able to hold up to 1000 events without a noticeable sluggishness in performance for typical usage.
  4. A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.

Glossary

  • CCA: Co-Curricular Activities
  • CLI: Command Line Interface
  • Data archiving: A feature related to data storage and archiving
  • Event: An activity entity of the application
  • Extensions: Variations or deviations from the main success scenario in a use case
  • GUI: Graphical User Interface
  • Jar file: A Java Archive file used to distribute and run Java applications
  • Mainstream OS: Windows, Linux, Unix, OS-X
  • Member: An individual entity of the application
  • MSS: Main Success Scenario
  • Non-Functional Requirements: Constraints under which system is developed and operated
  • PlantUML: The tool or language used for creating diagrams in the documentation
  • Sequence Diagram: A type of diagram used to visualize the sequence of interactions between components or objects

Appendix B: Instructions for manual testing

Given below are instructions to test the app manually.

:information_source: Note: These instructions only provide a starting point for testers to work on; testers are expected to do more exploratory testing.

Launch and shutdown

  1. Initial launch

    1. Download the jar file and copy into an empty folder

    2. Double-click the jar file Expected: Shows the GUI with a set of sample members and events. The window size may not be optimum.

  2. Saving window preferences

    1. Resize the window to an optimum size. Move the window to a different location. Close the window.

    2. Re-launch the app by double-clicking the jar file.
      Expected: The most recent window size and location is retained.

Creating a member

  1. Successfully creating a member
    1. Test case: createMember n/Andy Tan g/Male p/91234567 e/andytan@gmail.com a/10 Kent Ridge Crescent, Singapore 119278 t/logs
      Expected: The new member is added to the last entry of the member list. Member details shown in the result display without gender. Command box is cleared.
    2. For other positive test cases, try createMember with a unique name, and any combination of optional fields with valid inputs.
      Expected: Similar to previous.
  2. Unsuccessfully creating a member
    1. Prerequisite: createMember n/Andy Tan g/Male p/91234567 e/andytan@gmail.com a/10 Kent Ridge Crescent, Singapore 119278 t/logs has been entered once before.
    2. Test case: createMember n/Andy Tan g/Male p/91234567 e/andytan@gmail.com a/10 Kent Ridge Crescent, Singapore 119278 t/logs
      Expected: No member is added. Error details shown in the result display. Command box remains the same.
    3. For other negative test cases, try to input invalid values into each field. For unacceptable values of each field, refer to the User Guide.
      Expected: Similar to previous.

Editing a member

  1. Successfully editing a member
    1. Prerequisites: List all members using the list command. Multiple members in the list.
    2. Test case: editMember 1 p/90019001 e/newmail@gmail.com
      Expected: Phone number and email of first member is edited. Details of member edited without gender shown in the result display. Command box is cleared.
    3. For other positive test cases, try editMember with a valid index and at least one field to edit with a valid input.
      Expected: Similar to previous.
  2. Unsuccessfully editing a member
    1. Prerequisites:
      1. List all members using the list command. Multiple members in the list.
      2. createMember n/Andy Tan g/Male p/91234567 e/andytan@gmail.com a/10 Kent Ridge Crescent, Singapore 119278 t/logs has been entered once before.
    2. Test case: editMember 1 n/Andy Tan
      Expected: No member is edited. Error details shown in the result display. Command box remains the same.
    3. Other incorrect editMember commands to try: editMember 1, editMember with valid index, but invalid values in fields to be edited (For invalid values of fields, refer to User Guide).
      Expected: Similar to previous.

Deleting a member

  1. Successfully deleting a member

    1. Prerequisites: List all members using the list command. Multiple members in the list.

    2. Test case: deleteMember 1
      Expected: First member is deleted from the member list. Details of the deleted member without gender is shown in the result display. Command box is cleared.

  2. Unsuccessfully deleting a member

    1. Prerequisites: List all members using the list command. Multiple members in the list.

    2. Test case: deleteMember 0
      Expected: No member is deleted. Error details shown in the result display. Command box remains the same.

    3. Other incorrect deleteMember commands to try: deleteMember, deleteMember x (where x is larger than the list size)
      Expected: Similar to previous.

Creating an event

  1. Successfully creating an event
    1. Test case: createEvent n/Run l/NUS Track d/2023-09-20 t/Training
      Expected: The new event is added to the last entry of the event list. Event details shown in the result display. Command box is cleared.
    2. For other positive test cases, try createEvent with a unique name, and any combination of optional fields.
      Expected: Similar to previous.
  2. Unsuccessfully creating an event
    1. Prerequisite: createEvent n/Run l/NUS Track d/2023-09-20 t/Training has been entered once before.
    2. Test case: createEvent n/Run l/NUS Track d/2023-09-20 t/Training
      Expected: No event is added. Error details shown in the result display. Command box remains the same.
    3. For other negative test cases, try to input invalid values into each field. For unacceptable values of each field, refer to the User Guide.
      Expected: Similar to previous.

Editing an event

  1. Successfully editing an event
    1. Prerequisites: List all events using the list command. Multiple events in the list.
    2. Test case: editEvent 1 l/Pioneer House d/2023-10-25
      Expected: Location and date of first event is edited. Details of event edited shown in the result display. Command box is cleared.
    3. For other positive test cases, try editEvent with a valid index and at least one field to edit with a valid input.
      Expected: Similar to previous.
  2. Unsuccessfully editing an event
    1. Prerequisites:
      1. List all events using the list command. Multiple events in the list.
      2. createEvent n/Run l/NUS Track d/2023-09-20 t/Training has been entered once before.
    2. Test case: editEvent 1 n/Run
      Expected: No event is edited. Error details shown in the result display. Command box remains the same.
    3. Other incorrect editEvent commands to try: editEvent 1, editEvent with valid index, but invalid values in fields to be edited (For invalid values of fields, refer to User Guide).
      Expected: Similar to previous.

Deleting an event

  1. Successfully deleting an event

    1. Prerequisites: List all events using the list command. Multiple events in the list.

    2. Test case: deleteEvent 1
      Expected: First event is deleted from the event list. Details of the deleted event is shown in the result display. Command box is cleared.

  2. Unsuccessfully deleting an event

    1. Prerequisites: List all events using the list command. Multiple events in the list.

    2. Test case: deleteEvent 0
      Expected: No event is deleted. Error details shown in the result display. Command box remains the same.

    3. Other incorrect deleteEvent commands to try: deleteEvent, deleteEvent x (where x is larger than the list size)
      Expected: Similar to previous.

Enrolling a member to an event

  1. Successfully enrolling a member to an event
    1. Prerequisites: List all members and events using the list command. Multiple members and events in the list.
    2. Test case: enrol m/1 e/1 h/3 r/Role: Social Media Manager
      Expected: First member is enrolled to first event. Enrolment details shown in the result display. Command box is cleared.
    3. For other positive test cases, try enrol with a valid member and event indexes, and any combination of optional fields.
      Expected: Similar to previous.
  2. Unsuccessfully enrolling a member to an event
    1. Prerequisites: List all members and events using the list command. Multiple members and events in the list.
    2. Prerequisite: enrol m/1 e/1 h/3 r/Role: Social Media Manager has been entered once before.
    3. Test case: enrol m/1 e/1 h/3 r/Role: Social Media Manager
      Expected: No new enrolment created. Error details shown in the result display. Command box remains the same.
    4. For other negative test cases, try to input invalid values into each field. For unacceptable values of each field, refer to the User Guide.
      Expected: Similar to previous.

Editing an enrolment

  1. Successfully editing an enrolment
    1. Prerequisites: List all members and events using the list command. Multiple members and events in the list.

    2. Prerequisite: enrol m/1 e/1 h/3 r/Role: Social Media Manager has been entered once before.

    3. Test case: editEnrolment m/1 e/1 h/5 r/Role: Project Director
      Expected: Number of hours and remark of the enrolment of first member to first event is edited. Details of enrolment edited shown in the result display. Command box is cleared.
    4. For other positive test cases, try editEnrolment with a valid index and at least one field to edit with a valid input.
      Expected: Similar to previous.
  2. Unsuccessfully editing an enrolment
    1. Prerequisites: List all members and events using the list command. Multiple members and events in the list.
    2. Test case: editEnrolment m/1 e/0
      Expected: No enrolment is edited. Error details shown in the result display. Command box remains the same.
    3. For other negative test cases, try to input invalid values into each field. For unacceptable values of each field, refer to the User Guide.
      Expected: Similar to previous.

Unenrolling a member from an event

  1. Successfully unenrolling a member from an event

    1. Prerequisites: 1.List all events using the list command. Multiple events in the list.
      1. enrol m/1 e/1 h/3 r/Role: Social Media Manager has been entered once before.
    2. Test case: unenrol m/1 e/1
      Expected: First member is unenrolled from the first event. Details of the deleted enrolment is shown in the result display. Command box is cleared.

  2. Unsuccessfully unenrolling a member from an event

    1. Prerequisites: List all events using the list command. Multiple events in the list.

    2. Test case: unenrol m/0 e/0
      Expected: No enrolment is deleted. Error details shown in the result display. Command box remains the same.

    3. For other negative test cases, provide invalid indexes for member index or event index.
      Expected: Similar to previous.

Viewing a member

  1. Successfully viewing a member
    1. Prerequisites: List all members using the list command. Multiple members in the list.
    2. Test case: viewMember 1
      Expected: Event list updated with events of first event. Details of viewed member is shown in the result display. Command box is cleared.

  2. Unsuccessfully viewing a member

    1. Prerequisites: List all members using the list command. Multiple members in the list.

    2. Test case: viewMember 0
      Expected: No member is viewed. Error details shown in the result display. Command box remains the same.

    3. Other incorrect viewMember commands to try: viewMember, viewMember x (where x is larger than the list size)
      Expected: Similar to previous.

Viewing an event

  1. Successfully viewing an event
    1. Prerequisites: List all events using the list command. Multiple events in the list.
    2. Test case: viewEvent 1
      Expected: Member list updated with members of first event. Details of viewed event is shown in the result display. Command box is cleared.

  2. Unsuccessfully viewing an event

    1. Prerequisites: List all events using the list command. Multiple events in the list.

    2. Test case: viewEvent 0
      Expected: No event is viewed. Error details shown in the result display. Command box remains the same.

    3. Other incorrect viewEvent commands to try: viewEvent, viewEvent x (where x is larger than the list size)
      Expected: Similar to previous.

Find a member

  1. Successfully finding a member
    1. Test case: findMember Andy
      Expected: Member list updated with all members with name matching the word “Andy”. Number of members with name “Andy” shown in the result display. Command box is cleared.
  2. Unsuccessfully finding a member
    1. Test case: findMember
      Expected: Member list is not updated. Error details shown in the result display. Command box remains the same.

Find an event

  1. Successfully finding an event
    1. Test case: findEvent Training
      Expected: Event list updated with all events with name matching the word “Training”. Number of events with name “Training” shown in the result display. Command box is cleared.
  2. Unsuccessfully finding an event
    1. Test case: findEvent
      Expected: Event list is not updated. Error details shown in the result display. Command box remains the same.

Undo

  1. Successfully undo a command
    1. Prerequisite: The last command to be successfully executed is a command that can be undone (View User Guide for list of commands that can be undone).
    2. Test case: undo
      Expected: Previous state before the last command executed will be restored. Command that was undone shown in the result display. Command box is cleared.
  2. Unsuccesfully undo a command
    1. Prerequisite: No command that can be undone has been previously executed.
    2. Test case: undo
      Expected: No command is undone. Error details shown in the result display. Command box remains the same.

Redo

  1. Successfully redo a command
    1. Prerequisite: The last command to be successfully executed is undo.
    2. Test case: redo
      Expected: Previous state before the undo will be restored. Command that was redone shown in the result display. Command box is cleared.
  2. Unsuccesfully redo a command
    1. Prerequisite: The last command to be successfully executed is a command that can be undone (View User Guide for list of commands that can be undone).
    2. Test case: redo
      Expected: No command is redone. Error details shown in the result display. Command box remains the same.

Appendix C: Effort

Challenges

  • Hard-to-fix bug where UI did not update upon data change
  • Implementation of viewMember / viewEvent
  • Design of Enrolment class

Effort Required and Difficulty:

  • 3 entity types compared to AB3’s 1 entity type
  • 5 new data type (Date, Gender, Location, Remark, Hours)
  • 11 new commands (AB3 only had 8 commands of which 4 we updated - not included in the 11)
  • Updated most data types to be optional
  • Added a class (Enrolment) to relate 2 classes (Member & Event) - new feature not in AB3
  • Updated UI to accommodate to members and events - 2 list panels compared to 1 in AB3
  • Added new command history feature which allows users to recall commands similar to a terminal
  • Added new theme-switching feature

Achievements:

  • Added user-friendly features:
    • Command History
    • Undo/Redo
  • Added personalisation feature:
    • Theme switching
  • Related 2 classes together using the Enrolment class
  • Updated UI to display all required information
