User Guide

Everything you need to know about CCACommander Ultra Promax Xtra 9000PLUS

CCACommander Logo



Table of Contents

  1. Introduction
  2. About
  3. Quick Start
  4. Navigating User Interface
  5. Command History
  6. Features
    1. Member Commands
      1. Create a Member: createMember
      2. Edit a Member: editMember
      3. Delete a Member: deleteMember
    2. Event Commands
      1. Create an Event: createEvent
      2. Edit an Event: editEvent
      3. Delete an Event: deleteEvent
    3. Enrolment Commands
      1. Enrol a Member to an Event: enrol
      2. Edit an Enrolment: editEnrolment
      3. Unenrol a Member from an Event: unenrol
    4. View Commands
      1. View Events of Member: viewMember
      2. View Members of Event: viewEvent
      3. Find Member in member list: findMember
      4. Find Event in event list: findEvent
      5. List all Members and all Events: list
    5. Utility Commands
      1. Undoing a command: undo
      2. Redoing a command: redo
      3. Clear all Members and Events: clear
      4. Help: help
      5. Exit: exit
      6. Saving the data
  7. FAQ
  8. Known Issues
  9. Glossary
  10. Command Summary
  11. List of Acceptable Values

Introduction

As a Co-curricular Activity (CCA) head, do you find yourself struggling to manage your CCA members’ attendances and record the array of events that your CCA has? Are the heaps of spreadsheets you are using to manage them making you feel overwhelmed? Well, fear not, CCACommander Ultra Promax Xtra 9000PLUS is here to save the day!

CCACommander is a desktop application that helps CCA leaders record details of their members and events, whilst tracking every member’s attendance. It helps to organise members and events into easy-to-view compartments under a singular Graphical User Interface (GUI) while providing granular control to you via its in-built Command Line Interface (CLI). If you can type quickly, CCACommander can help you complete your administrative tasks much more efficiently than traditional GUI applications.

About

This user guide provides documentation on how you can install and use CCACommander Ultra Promax Xtra 9000PLUS. Descriptions of CCACommander’s features and how to use them have been carefully organised into key sections for your convenience. To get started, take a look at our quick start guide!

This guide uses the following features to make it easier for you to navigate around:

  • Words that look like this can be clicked to jump to the related section.
  • Words that look like this refer to commands which you can type into the command box of CCACommander.
  • Words that look like this refer to keyboard keys that you can press.

:warning: Boxes with the :warning: icon contain important information that you should read.

:information_source: Boxes with the :information_source: icon contain additional useful information.

:bulb: Boxes with the :bulb: icon contain additional tips and tricks to help you get the most out of CCACommander.

Quick Start

:warning: We assume that you have some basic knowledge of terminal commands. You can learn how to use the terminal with this guide.

  1. Ensure you have Java 11 installed in your computer by following this guide.

  2. Download the latest ccacommander.jar from here.

  3. Put the downloaded file into a folder of your choice (preferably a new empty folder).

  4. Open a command terminal in the folder you put the CCACommander file in, and use the java -jar ccacommander.jar command to run the application. A GUI resembling the one shown below should appear in a few seconds. Note how the app contains some sample data.
    Ui
    Fig 1: Initial application display

  5. Type the command in the command box and press ↵ Enter to execute it.

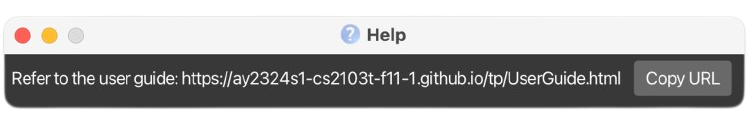

    E.g. typing help and pressing ↵ Enter will open the help window.
    Some example commands you can try:

    • list : Lists all members and events.

    • createMember n/Lim Jun Jie g/Male p/98765432 e/limjunjie@gmail.com a/19 Kent Ridge Crescent, Singapore 119278: Creates a member named “Lim Jun Jie” in CCACommander.

    • deleteMember 3 : Deletes the 3rd member shown in the current list.

  6. You can refer to the Features section below for the details of each command.

:bulb: You can use the clear command to remove the sample data.

Back to top

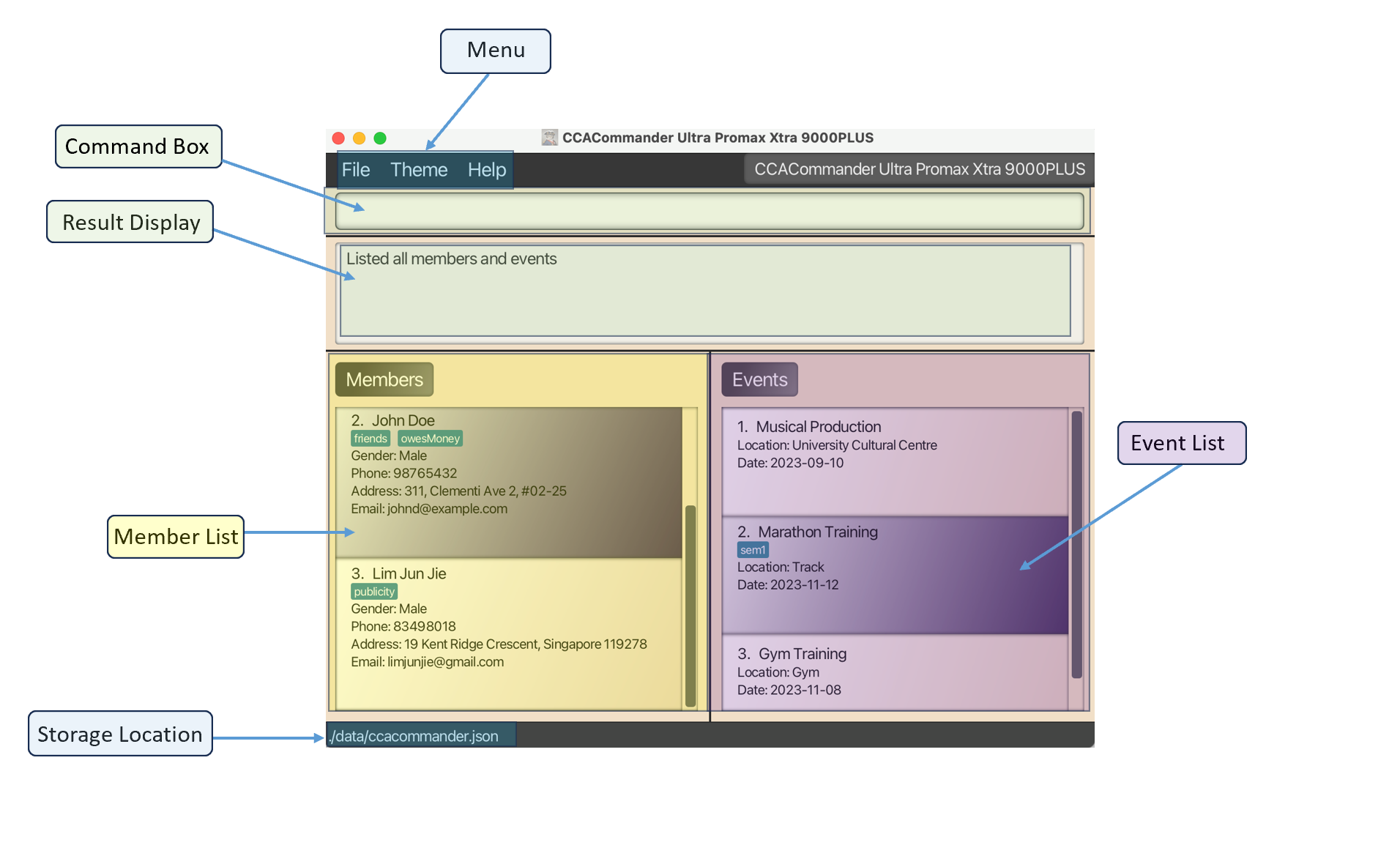

UI_breakdown
Fig 2: Components of CCACommander

Here are the important components of CCACommander that you will use and interact with.

Menu: The CCACommander menu is located at the top-left corner of your screen. Click the sub-menu items to execute the following:

  1. File: Exit the program
  2. Theme: Toggle between light and dark themes

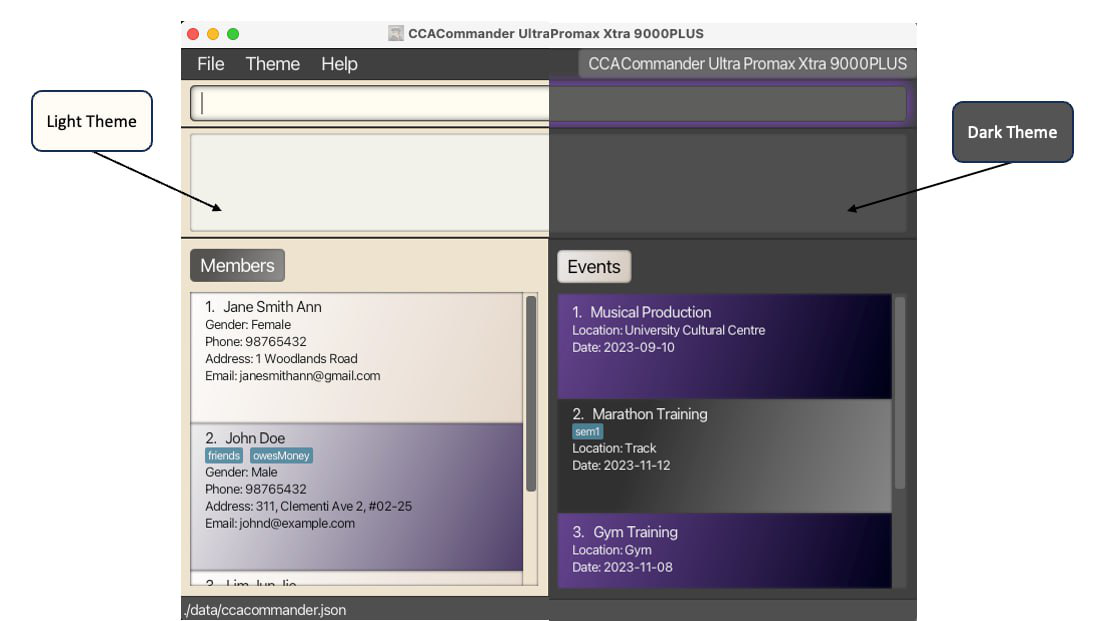

    Light and dark themes
    Fig 3: Light and dark theme
  3. Help: Access our user guide

Command Box: Type in your text commands.
Result Display: View messages from CCACommander regarding your commands.
Member List: View the members stored in CCACommander.
Event List: View the events stored in CCACommander.
Storage Location: Locate where your CCACommander data is stored in your computer.

Command History

You can quickly recall previously entered commands for convenience as CCACommander stores almost all (see the info card below to see what commands are stored) commands entered by the user.

Upon selecting the command box, you can use the ↑ to ↓ key to navigate through the commands entered.

Example:

  1. You have just marked attendance for the first member in the member list using the editEnrolment m/1 e/1 r/Present command.
  2. You can then use ↑ to get editEnrolment m/1 e/1 r/Present
  3. You can edit the member index to get editEnrolment m/2 e/1 r/Present to mark the second member as present.

:information_source: CCACommander will not store 2 of the same commands if they were entered twice in a row. Likewise, commands containing exclusively of blank spaces will not be stored as well.

Upon entering the ⌫ Backspace or the ↵ Enter key, users will have to re-navigate from the most recent command as it will be treated as an edit or entry of command.

Back to top

Features

:information_source: Notes about the command format:

  • Words in UPPER_CASE are the parameters to be supplied by the user.
    E.g. in createMember n/NAME, NAME is a parameter which can be used as createMember n/John Doe.

  • Items in square brackets are optional.
    E.g. n/NAME [t/TAG] can be used as n/John Doe t/friend or as n/John Doe.

  • Items with …​ after them can be used multiple times including zero times.
    E.g. [t/TAG]…​ can be used as   (i.e. 0 times), t/friend, t/friend t/family etc.

  • Parameters can be in any given order.
    E.g. if the command specifies n/NAME p/PHONE_NUMBER, p/PHONE_NUMBER n/NAME is also acceptable.

  • Some parameters of certain commands have constraints on the acceptable inputs.
    You can refer to the List of Acceptable Values section below for more details.

  • Extraneous parameters for commands that do not take in parameters (such as help, list, exit and clear) will be ignored.
    E.g. if the command specifies help 123, it will be interpreted as help.

  • If you are using a PDF version of this document, be careful when copying and pasting commands that span multiple lines as space characters surrounding line-breaks may be omitted when copied over to the application.

Back to top

Member Commands

The vitality of a CCA lies in its members. CCACommander allows you to manage your members with the commands below:

Create a Member: createMember

Creates a new member with accompanying personal details (name, gender, phone number, email address, home address, tag).

Format: createMember n/MEMBER_NAME g/GENDER [p/PHONE_NUMBER] [e/EMAIL] [a/ADDRESS] [t/TAG]...

Examples:

  • createMember n/Lim Jun Jie g/Male p/83498018 e/limjunjie@gmail.com a/19 Kent Ridge Crescent, Singapore 119278 t/publicity creates a member named “Lim Jun Jie” with gender “Male”, phone number of “83498018”, email of “limjunjie@gmail.com”, home address of “19 Kent Ridge Crescent, Singapore 119278” and a “publicity” tag:

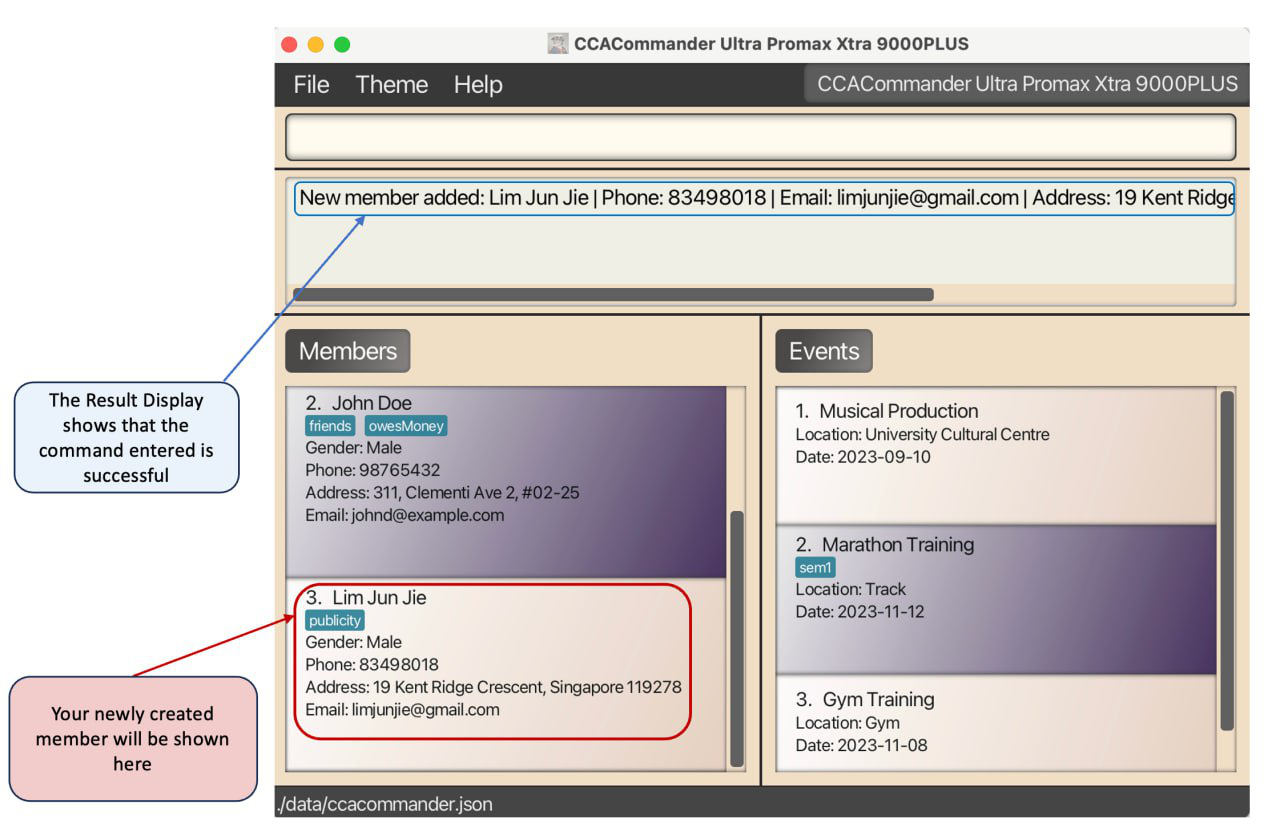

createMember Post Command
Fig 4: After executing the createMember command

:information_source: CCACommander will automatically capitalise the members’ names for you, meaning an input of “john doe” will become “John Doe” automatically!

Edit a Member: editMember

Edits the member at the specified index with the specified fields.

Format: editMember MEMBER_INDEX [n/MEMBER_NAME] [g/GENDER] [p/PHONE_NUMBER] [e/EMAIL] [a/ADDRESS] [t/TAG]...

  • MEMBER_INDEX refers to the index number shown in the currently displayed member list.
  • At least one field to edit must be provided.

Examples:

  • editMember 1 p/91234567 e/johndoe@example.com edits the member at index 1, changing their phone number to “91234567” and email to “johndoe@example.com”.

Delete a Member: deleteMember

Deletes the member at the specified index.

Format: deleteMember MEMBER_INDEX

  • Deletes the member at the specified MEMBER_INDEX.
  • MEMBER_INDEX refers to the index number shown in the currently displayed member list.

Examples:

  • deleteMember 1 deletes the member at index 1 in the member list.
  • deleteMember 10 deletes the member at index 10 in the member list.

Event Commands

As a CCA head, keeping track of event details is a major responsibility. CCACommander allows you to do so with the event-related commands below:

Create an Event: createEvent

Creates a new event with accompanying details (name, location, date, tag).

Format: createEvent n/EVENT_NAME l/LOCATION d/DATE [t/TAG]...

Examples:

  • createEvent n/Exco Planning l/Planning Room d/2023-12-10 t/Sem1 creates an event named “Exco Planning” held at the location “Planning Room” on the date 2023-12-10, with tag “Sem1”.

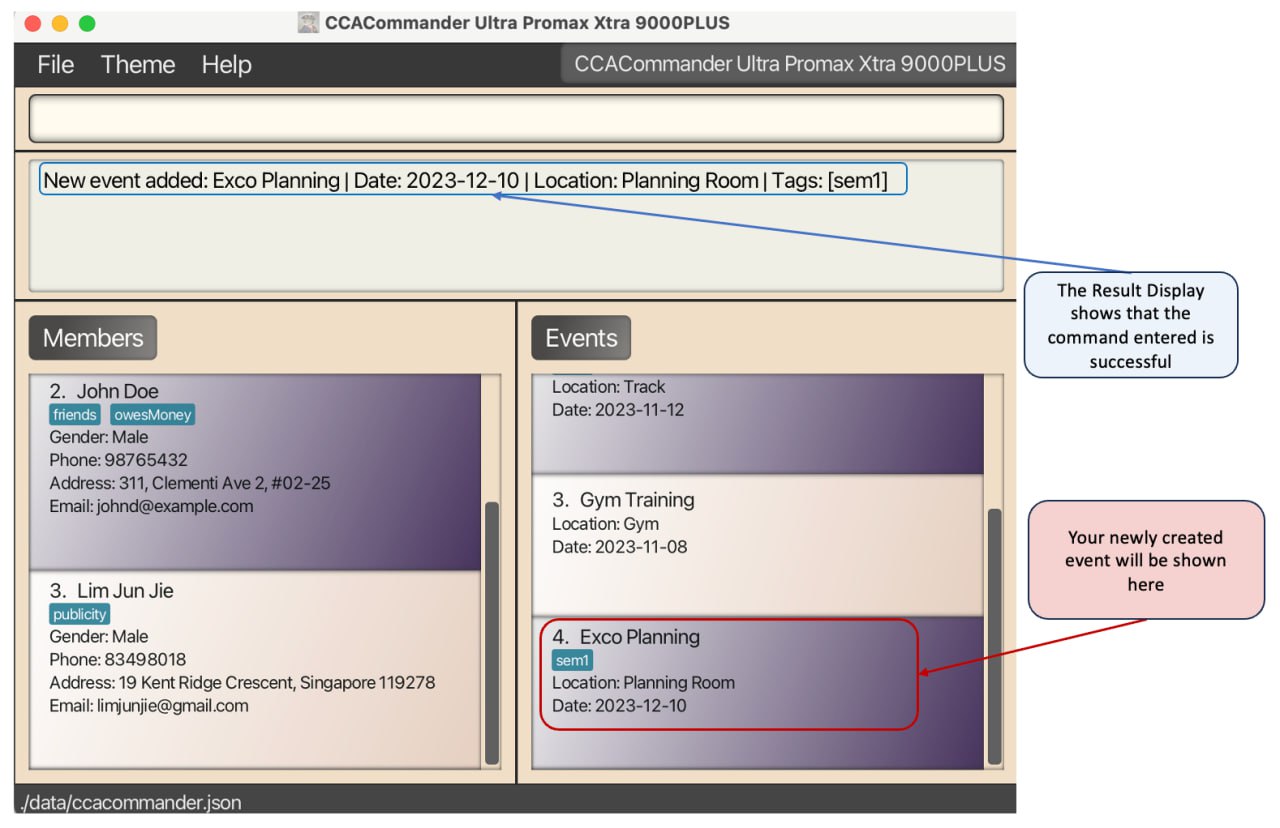

createEvent Post Command
Fig 5: After executing the createEvent command

Edit an Event: editEvent

Edits the event at the specified index with the specified attributes.

Format: editEvent EVENT_INDEX [n/EVENT_NAME] [l/LOCATION] [d/DATE] [t/TAG]...

  • EVENT_INDEX refers to the index number shown in the currently displayed event list.
  • At least one field to edit must be provided.

Examples:

  • editEvent 1 l/MBS d/2023-10-20 edits the event at index 1, changing the location to “MBS” and the date to “2023-10-20”
  • editEvent 3 l/UCC Theater edits the event at index 3, changing the location to “UCC Theater”.

Delete an Event: deleteEvent

Deletes the event at the specified index.

Format: deleteEvent EVENT_INDEX

  • Deletes the event at the specified EVENT_INDEX.
  • EVENT_INDEX refers to the index number shown in the currently displayed event list.

Examples:

  • deleteEvent 1 deletes the event at index 1 in the event list.
  • deleteEvent 10 deletes the event at index 10 in the event list.

:information_source: The EVENT_INDEX parameter refers to the index number shown in the currently displayed event list.

Back to top

Enrolment Commands

Enrolments are a way for you to manage your members’ involvements in your events. The enrolment commands below are the bread-and-butter for your participation tracking needs:

Enrol a Member to an Event: enrol

Enrols a member to an event.

Format: enrol m/MEMBER_INDEX e/EVENT_INDEX [h/NUMBER_OF_HOURS] [r/REMARK]

  • Enrols the member at the specified MEMBER_INDEX to the event at the specified EVENT_INDEX with NUMBER_OF_HOURS specifying the number of hours that the member contributed and REMARK stating extra remarks about the member and event.

Examples:

  • enrol m/1 e/1 h/2 r/Role: Photographer enrols member at member index 1 in the member list to the event at event index 1 in the event list, where the member had 2 hours of contributions to that event and has a remark of “Role: Photographer”.
  • enrol m/5 e/1 enrols the member at member index 5 in the member list to the event at event index 1 in the event list.

Edit an Enrolment: editEnrolment

  • Edits the specified MEMBER_INDEX’s enrolment of the event at the specified EVENT_INDEX with NUMBER_OF_HOURS specifying the number of hours that the member contributed and REMARK stating extra remarks about the member and event.

Format: editEnrolment m/MEMBER_INDEX e/EVENT_INDEX [h/NUMBER_OF_HOURS] [r/REMARK]

:information_source: Remember to provide at least one field to be edited!

Examples:

  • editEnroment m/1 e/2 h/5 r/Role: Exco edits the enrolment of the member at member index 1 to the event at event index 2, changing the number of hours to 5 and the remark to “Role: Exco”.

Unenrol a Member from an Event: unenrol

Unenrol a member from an event.

Format: unenrol m/MEMBER_INDEX e/EVENT_INDEX

  • Unenrol the member at the specified MEMBER_INDEX from the event at the specified EVENT_INDEX.
  • The member at MEMBER_INDEX must be enrolled to the event at EVENT_INDEX.

Examples:

  • unenrol m/1 e/5 unenrols the member at member index 1 in the member list from the event at event index 5 in the event list.
  • unenrol m/5 e/1 unenrols the member at member index 5 in the member list from the event at event index 1 in the event list.

:information_source: The MEMBER_INDEX/EVENT_INDEX parameter refers to the index number shown in the currently displayed member/event list.

Back to top

View Commands

In CCACommander, you can quickly change the view to fit your current use case, be it to check for the enrolment of an event, searching for a member and more!

View Events of Member: viewMember

Lists all the events of a specified member index.

Format: viewMember MEMBER_INDEX

  • Views the events of the member at the specified MEMBER_INDEX.
  • MEMBER_INDEX refers to the index number shown in the currently displayed member list.

Examples:

  • viewMember 3 displays events of the 3rd member in the member list.

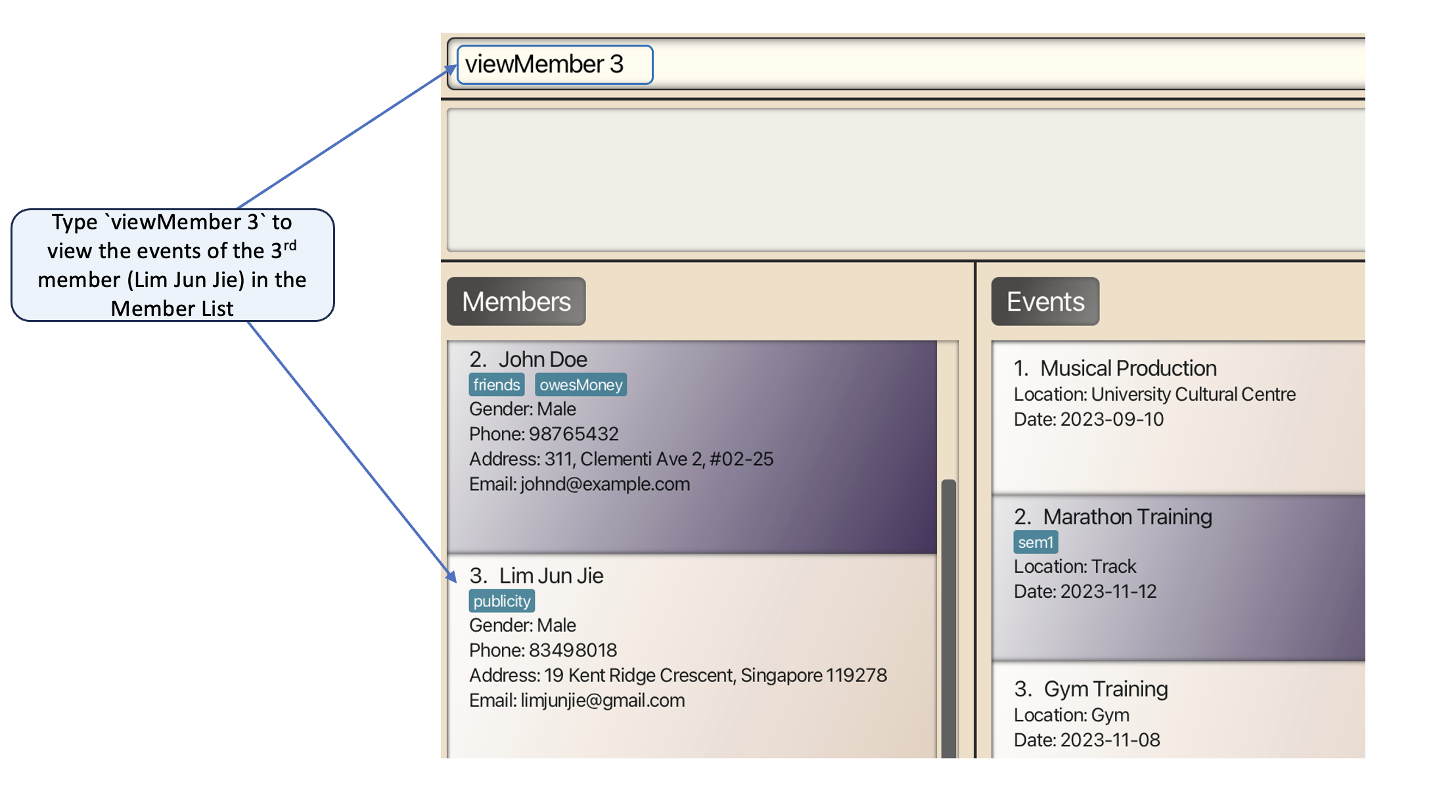

viewMember Pre Command
Fig 6: Before executing the viewMember command

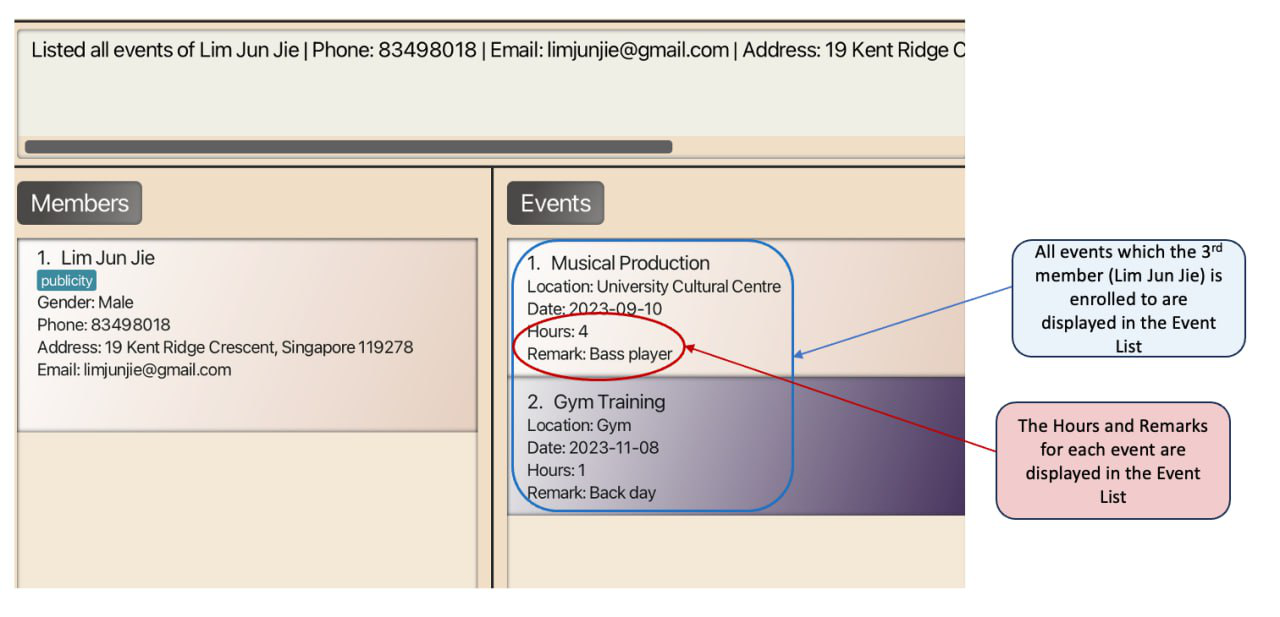

viewMember Post Command
Fig 7: After executing the viewMember command

View Members of Event: viewEvent

Lists all the members of a specified event index.

Format: viewEvent EVENT_INDEX

  • Views the members of the event at the specified EVENT_INDEX.
  • EVENT_INDEX refers to the index number shown in the currently displayed event list.

Examples:

  • viewEvent 1 displays members of the 1st event in the event list.

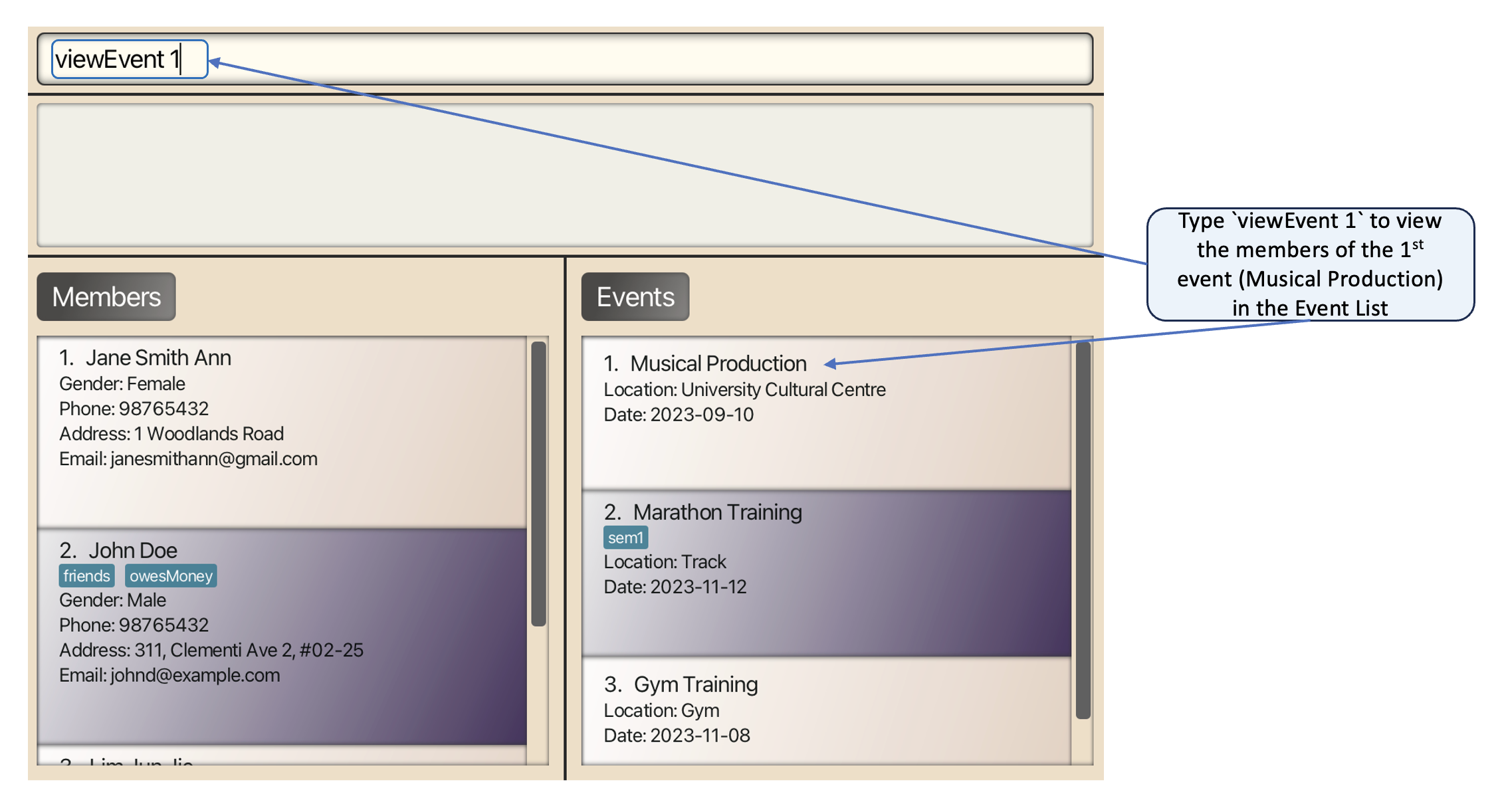

viewEvent Pre Command
Fig 8: Before executing the viewEvent command

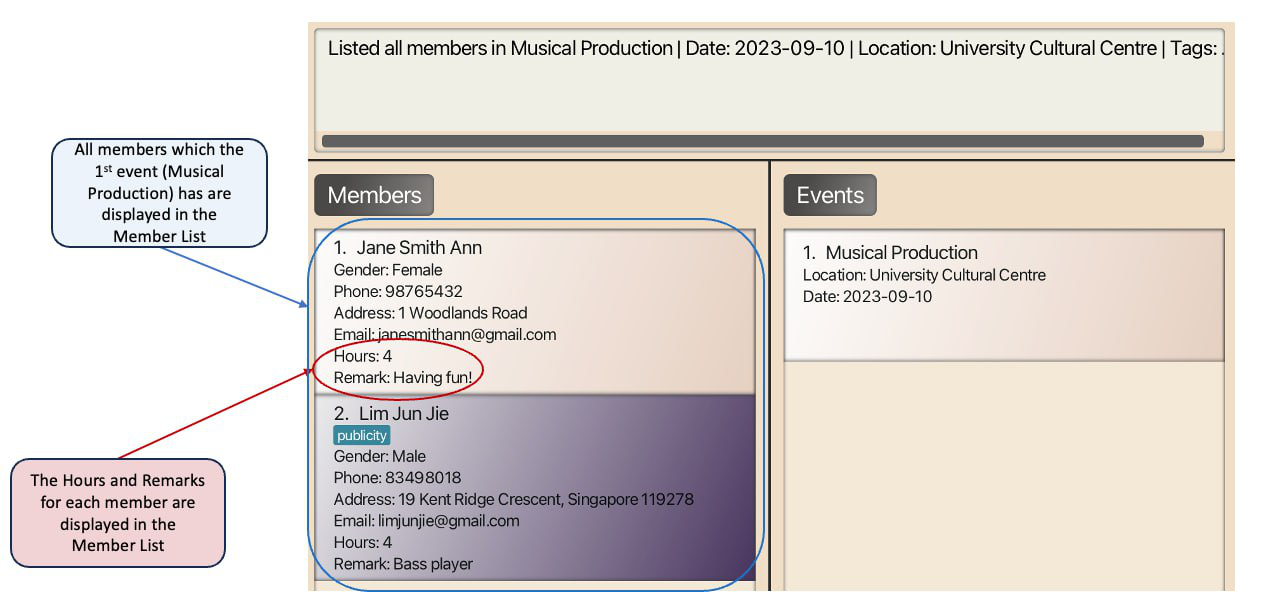

viewEvent Post Command
Fig 9: After executing the viewEvent command

Find Member in member list: findMember

Finds and lists member(s) whose name(s) contain the provided MEMBER_NAME.

Format: findMember MEMBER_NAME [MORE_NAMES]...

  • Finds and lists member(s) whose name(s) contain the specified MEMBER_NAME.
  • More than 1 MEMBER_NAME can be provided to find more members.

Examples:

  • findMember alice displays the member(s) whose name(s) contain ‘alice’
  • findMember alice bob charlie displays the member(s) whose name(s) contain ‘alice’, ‘bob’ and/or ‘charlie’.

:information_source: The findMember command requires the names to be typed in full, meaning “Nich” will not suffice for finding “Nicholas”. To make it convenient for you, the names do not have to be capitalised!

Find Event in event list: findEvent

Finds and lists event(s) which name(s) contain the provided EVENT_NAME.

Format: findEvent EVENT_NAME [MORE_NAMES]...

  • Finds and lists event(s) which name(s) contain the specified EVENT_NAME.
  • More than 1 EVENT_NAME can be provided to find more events.

Examples:

  • findEvent party displays the event(s) which name(s) contain ‘party’
  • findEvent party marathon gaming displays the event(s) which name(s) contain “party”, “marathon” and/or “gaming”.

:information_source: The findEvent command requires the names to be typed in full, meaning “Par” will not suffice for finding “Party”. To make it convenient for you, the names do not have to be capitalised!

List all Members and all Events: list

List all members and all events in the CCA in two separate columns.

Format: list

Utility Commands

CCACommander provides you with powerful utility commands to make your admin tasks even more of a breeze than it was before.

Undoing a command: undo

Undoes the previous command that the user has entered, which has changed the data within CCACommander.

Format: undo

List of commands that can be undone:

  • clear
  • createMember
  • deleteMember
  • editMember
  • createEvent
  • deleteEvent
  • editEvent
  • enrol
  • unenrol
  • editEnrolment

Redoing a command: redo

Redoes a command that the user has undone previously.

Format: redo

Clear all Members and Events: clear

Clears all Member and Event entries from CCACommander.

Format: clear

:bulb: Accidentally cleared your list? Fret not as you can use the undo command to recover your data!

Help: help

Displays a pop-out window that shows a link to this User Guide.

Format: help

Help Window
Fig 10: A help pop-up window will appear upon entering the help command

Exit: exit

Closes CCACommander and its display window.

Format: exit

:information_source: The exit command exists for your convenience. It performs the same task as the cross in the top bar and the Exit button in the File sub-menu item.

Saving the data

CCACommander data are saved automatically as a JSON file [JAR file location]/data/ccacommander.json. Advanced users are welcome to update data directly by editing that data file.

:exclamation: Caution: If your changes to the data file makes its format invalid, CCACommander will discard all data and start with an empty data file at the next run. Hence, it is recommended to take a backup of the file before editing it.

Back to top

FAQ

Q: How do I transfer my data to another computer?
A: Install the app in the other computer and overwrite the empty data file it creates with the file that contains the data of your previous CCACommander folder.

Q: Do I need Wi-Fi connection to use CCACommander?
A: No, you can use CCACommander offline.

Q: How much storage space do I need for CCACommander?
A: CCACommander is so lightweight that you only need 30 MB on your computer.

Q: What happens if my laptop battery dies suddenly?
A: Rest assured, your data remains securely stored on your laptop. Once your laptop is recharged, you can regain access to all your stored information.

Known Issues

  1. When using multiple screens, if you move the application to a secondary screen, and later switch to using only the primary screen, the GUI will open off-screen. The remedy is to delete the preferences.json file created by the application before running the application again.
  2. Edit commands go back to the main view no matter what view you were in.

Glossary

This glossary provides definitions for the special terms used in this user guide.

CCA: Co-curricular activity.

Command: The text typed in by the user as a CCA Head for CCACommander.

Index: The number beside the corresponding entry in a list.

Tag: A word or phrase that labels a member or an event.

Command Summary

Action Format, Examples
Create a Member createMember n/MEMBER_NAME g/GENDER [p/PHONE_NUMBER] [e/EMAIL] [a/ADDRESS] [t/TAG]...
e.g. createMember n/Lim Jun Jie g/Male p/83498018 e/limjunjie@gmail.com a/19 Kent Ridge Crescent, Singapore 119278 t/publicity
Edit a Member editMember MEMBER_INDEX [n/MEMBER_NAME] [g/GENDER] [p/PHONE_NUMBER] [e/EMAIL] [a/ADDRESS] [t/TAG]...
e.g.editMember 1 p/91234567 e/johndoe@example.com
Delete a Member deleteMember MEMBER_INDEX
e.g.deleteMember 1
Create an Event createEvent n/EVENT_NAME [l/LOCATION] [d/DATE] [t/TAG]...
e.g.createEvent n/Party l/Raffles Hall d/2023-09-16 t/Dinner t/Sem1
Edit an Event editEvent EVENT_INDEX [n/EVENT_NAME] [l/LOCATION] [d/DATE] [t/TAG]...
e.g. editEvent 1 l/MBS d/2023-10-20
Delete an Event deleteEvent EVENT_INDEX
e.g.deleteEvent 1
Enrol a Member to an Event enrol m/MEMBER_INDEX e/EVENT_INDEX [h/NUMBER_OF_HOURS] [r/REMARK]
e.g.enrol m/1 e/1 h/2 r/Role: Photographer
Edit an Enrolment editEnrolment m/MEMBER_INDEX e/EVENT_INDEX [h/NUMBER_OF_HOURS] [r/REMARK]
e.g. editEnrolment m/1 e/2 h/5 r/Role: Exco
Unenrol Member from an Event unenrol m/MEMBER_INDEX e/EVENT_INDEX
e.g.unenrol m/1 e/1
View Events of Member viewMember MEMBER_INDEX
e.g.viewMember 3
View Members of Event viewEvent EVENT_INDEX
e.g.viewEvent 1
Find Member in member list findMember MEMBER_NAME [MORE_NAMES]...
e.g.findMember anthony nicholas
Find Event in event list findEvent EVENT_NAME [MORE_NAMES]...
e.g.findEvent party
List all Members and all Events list
Undo undo
Redo redo
Clear all Members and Events clear
Help help
Exit exit

Back to top

List of Acceptable Values

Command Field Acceptable values
createMember / editMember MEMBER_NAME Only contain alphanumeric characters and spaces, and should not be blank
GENDER Male, Female, Others in any case
PHONE_NUMBER Only contain numbers, and at least 3 digits long
EMAIL An email with a valid extension (e.g. @gmail.com)
ADDRESS Any non-blank values except the following prefixes: n/, g/, p/, e/, a/, t/
TAG Only contain alphanumeric characters with no spaces in between, but can be blank
createEvent / editEvent EVENT_NAME Only contain alphanumeric characters and spaces, and should not be blank
LOCATION Must not be blank and can take in any values, except the following prefixes:e/, l/, d/, t/
DATE Must be a valid date in the format of YYYY-MM-DD
TAG Only contain alphanumeric characters with no spaces in between, but can be blank
deleteMember / deleteEvent MEMBER_INDEX / EVENT_INDEX Must be a positive integer that is within the range of the length of the currently displayed member/event list
enrol / editEnrolment MEMBER_INDEX / EVENT_INDEX Must be a positive integer that is within the range of the length of the currently displayed member/event list
NUMBER_OF_HOURS Must be a positive integer and must be less than or equal to 2147483647
REMARK Must not be blank and can take in any values, except the following prefixes:m/, e/, h/, r/
viewMember / viewEvent MEMBER_INDEX / EVENT_INDEX Must be a positive integer that is within the range of the length of the currently displayed member/event list
findMember / findEvent MEMBER_NAME / EVENT_NAME / MORE_NAMES Any non-blank values

Back to top
